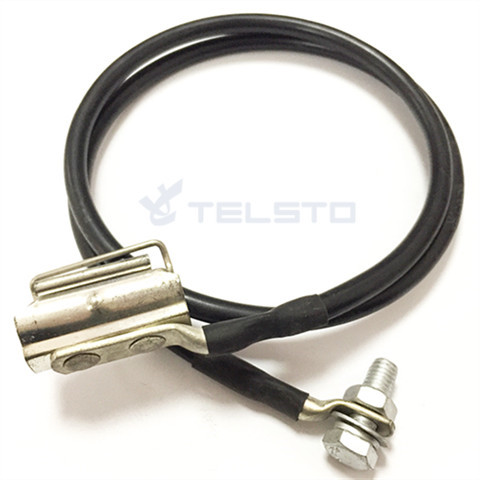

7/8″”Coaxial cable grounding kit

Product Information


Quick Details


Place of Origin:Shanghai, China (Mainland)
Brand Name:telsto
Model Number:grounding kit
Inner contact:Tinned copper braid strap
Grounding clamp:304 stainless steel
Seal strip:Butyl seal strip (each side)
Cable Type:Standard - 1/4
Copper plugs:Tinned copper plugs
Installation accessories:Inner hex bolts for quick installation
Nominal impluse discharge current:70 KA
Insulation resistance:500 MΩ
Contact resistance:≤ 2 mΩ
Grounding wire length:Standard: 0.5 m, 1 m, 2 m, 3 m

Grounding kits, Stainless Steel Hanger, indoor and outdoor grounding kits series, frame work type grounding kits, spring type

Size: outdoor grounding kit for 7/8" 1m/ 1.5m cable, outdoor grounding kit for 1-1/4" 1m/ 1.5m cable, outdoor grounding kit for 1-5/8" 1m/ 1.5m cable.

Grounding kits, which are used for the grounding of RF feeder, Standard, Sure Ground and Sure Ground Plus, We use brass as the grounding conductor, which has high current handling and good heat exchanger capability.
We have Spring type Grounding Kits, Clamp-Strap typeGrounding Kits, Framework type Grounding Kits, Indoor Grounding kit, Hoisting grip and etc...

Telsto supply RF connector, N connector, 7/16 connector, RF adapter, superflexible cables jumper, flexible cables jumper, RF Jumper cable, feeder clamp, through type clamp, suspend hamulus type stainless steel hanger, two hole type hanger, anchor ear type stainless steel hanger, cable clamp, grounding kit, spring type grounding kits, clamp-strap type grounding kits, copper strap type grounding kits, indoor grounding kits, cable entry, wall entry, aluminium alloy wall / roof feed thru plate, cable entry boot, adjustable diameter wall feeder through, grounding bar...

If you have any inquiries, please don't hesitate to contact us.

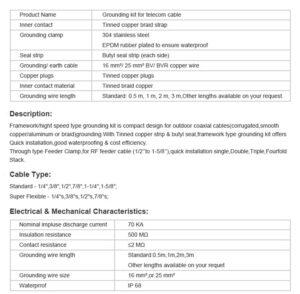

Product  Description Part No.
Click-on Type

including butyl and electric tape

for  1/4" coaxiable cable   TEL-GK-C-1/4
for  1/2" coaxiable cable   TEL-GK-C-1/2
for  7/8" coaxiable cable   TEL-GK-C-7/8
for  1-1/4" coaxiable cable   TEL-GK-C-5/4
for  1-5/8" coaxiable cable   TEL-GK-C-13/8
, , , ,
