Cable enrty window plate 7/8

Product Description

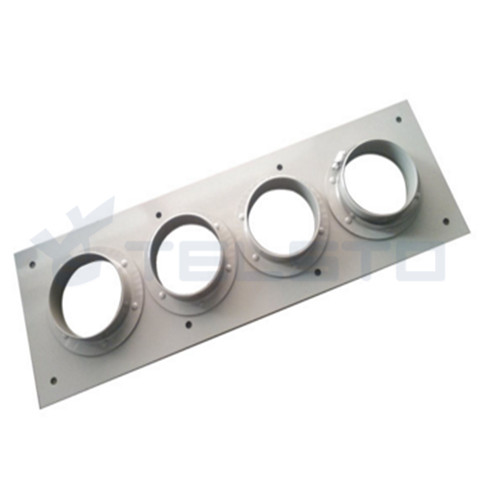

Telsto Aluminum Feed-thru Entry Panels enable multi coax runs to enter building and shelters. The entry panel supports coax at the entry point and prevents moisture from entering the building. Feed-thru entry panels feature 4” or 5” openings to accept 4” or 5” boot assemblies. They can be used in both interior and exterior wall mounting applications. Each feed-thru entry panel includes #14 stainless steel screws, finishing washers, plastic anchors, and entry port caps. Feed-thru entry panels are manufactured from high quality aluminum and are powder-coated to ensure long-term integrity and provide appealing aesthetics.

*Application: Entry port solutions
*Size: Customized
*Design: Entry plates with round ports
*Feature: Easy to install solution
*Mounts to: Walls
*Material: Aluminum
*Includes: Port, caps, mounting hardware

Quick Details


Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Material:Aluminum

Feeder cable entry plate 1-1/4", 7/8", 1/2"

As a National wide wire &cable supplier Telsto continually provide different quality products in the telecom communication fields, the main product is 7/8 feeder cable, 1/2 feeder cable, feeder claim, feeder tools, all kind of the male, female, DIN, connector feeder connector, feeder grounding kit, grounding bar, low loss 7/8 jumper cable and 1/2 jumper cable, indoor optic jumper cable and outdoor fiber cable, splitter and coupler and accessories in the telecom field.

Feeder Window Wall Type

Cable entry is used for weatherproof sealing when several different feeders cables and other cable entry into basesation room. With excellent windproof, waterproof, leakproof performance, it could make all kinds of indoor instruments not be impacted by outside weather. The Frame is made of SUS304 or Aluminium, and surface is passivated or powder plated, the rubber module has the performance of Anti-aging, high and low temperature resistance, corrosion resistance. With simple structure, no need to use tapes, this system could be easily installed. Cable entry size and color be customised.

1. Wall Type

Material
Metal of panel 304/Q235/AI
Surface plating Natural color or powder painted
Boot Nitrile Butadiene rubber
Specification
Hole number two/four/six/nine/twelve holes
Boot spec. 1/2x4, 7/8x3, 5/4x3, or 13/8x1
Thickness of panel 2 mm
Sealing plate size Outer dimension (mm) Beforehand hole size
2 holes 400 x 200 240 x 100
4 holes 400 x 400 240 x 240
6 holes 390 x 540 240 x 380
9 holes 500 x 500 380 x 380
12 holes 540 x 640 380 x 510



, ,
