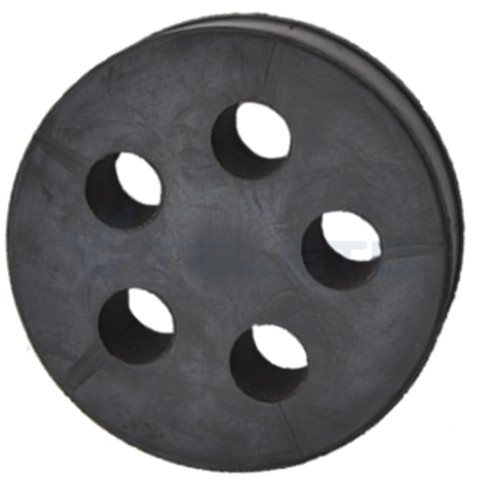

cable entry boot assembly kit

Product Description


cable entry boot assembly kit

Boot Assemblies
· 1. Material unaffected by ozone,sunlight or aging
· 2. EPDM rubber
· 3. Includes two 304 stainless steel hose clamps
· 4. One piece design for easy installation
· 5. Inserts and plugs sold separately
Port Size #of Ports Port Layout
4’’ 1 1x1
4’’ 2 1x2

Quick Details


Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Model Number:boot assemblies
Product Line:Entry Boot & Panel
Product Type:boot assemblies
Material of metal part:304
Material of plastic part:PP/PA/EPDM
Application:telecom cable installation
OEM:accepted

Introduction:


Each Assembly cable entry boot include :

1. A outer boot. (EPDM Rubber)

2. A selectable inner cushion insert. (EPDM Rubber)

3. Two hose clamp. (Stainless steel)

The 4" cable entry boot, is made of EPDM rubber. The material is unaffected by ozone, sunlight, aging, or temperature extremes. It is to be intalled to the 4" entry panel, and allow the various coaxial cable go into the shelter throgh them.

One piece design for easy installation and superior water sealing properties.

Application: Entry port solutions 4 inch Coaxial Cable Entry Boot Assembly Kit For 9 way 1/2 super flexible cable
Size: Versions for 1/2" to 2-1/4" coaxial cable
Design

Compression boot kit for aluminumentry panels

Feature: One-piece design simplifies installation
Mounts to 4" (101.6 mm) entry panels
Material: EPDM rubber
Includes: Boot, cushion, two hose clamps
