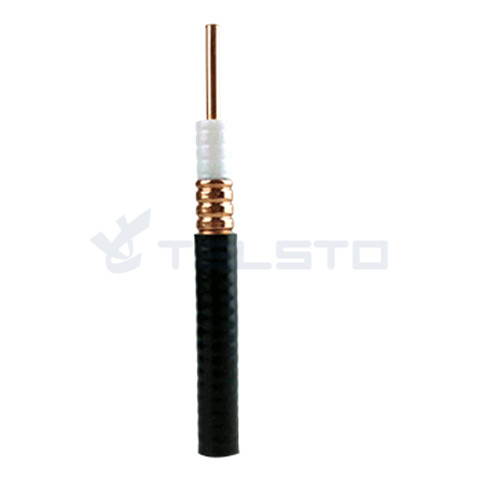

construction
inner conductor material conpper clad aluminum wire
dia. 4.80±0.05 mm
insulation material physically foamed PE
dia. 12.20±0.30 mm
outer conductor material ring corrugated copper
diameter 13.80±0.20 mm
jacket material PVC or fire retardant PE
diameter 15.80±0.20 mm
mechanical properties
bending

radius

single

repeated

moving

70 mm

125 mm

350 mm

pulling strength 1130 N
crush resistance 2.0 kg/mm
recommended temperature PE jacket store -70±85°C
installation -40±60°C
operation -55±85°C
fire retardant PE jacket store -30±80°C
installation -25±60°C
operation -30±80°C
electrical properties
impedance 50±2 Ω
capacitance 75.8 pF/m
inductance 0.19 uH/m
propagation velocity 88 %
DC breakdown voltage 4.0 kV
insulation resistance >5000 MQ.km
peak power 40 kW
screening attenuation >120 dB
cut-off frequency 8.8 GHz
attenuation and average power
frequency,MHz power rate@20°C,kW nom.attenuation@20°C,dB/100m
10 11.3 0.67
100 3.49 2.17
450 1.59 4.75
690 1.338 5.97
800 1.17 6.46
900 1.1 6.85
1000 1.04 7.28
1800 0.753 10.10
2000 0.71 10.70
2200 0.656 11.24
2400 0.620 11.78
2500 0.612 12.06
2600 0.604 12.34
2700 0.595 12.61
3000 0.565 13.40
maximum attenuation value may be 105% of the nominal attenuaiton value.
vswr
820-960MHz ≤1.15
1700-2200MHz ≤1.15
2300-2400MHz ≤1.15
standards
2011/65/EU compliant
IEC61196.1-2005 compliant




Quick Details

  • Place of Origin: shanghai, China (Mainland)
  • Brand Name: Hansen
  • Model Number: RF5012
  • Type: Coaxial
  • Number of Conductors: 1
  • inner conductor: conpper clad aluminum wire
  • insulation: physically foamed PE
  • outer conductor: ring corrugated copper
  • jacket: PE or fire retardant PE
  • impendance: 50±2 Ω
  • capacitance: 75.8 pF/m
  • propagation velocity: 88 %
  • insulation resistance: >5000 MQ.km
  • peak power: 40 kW
