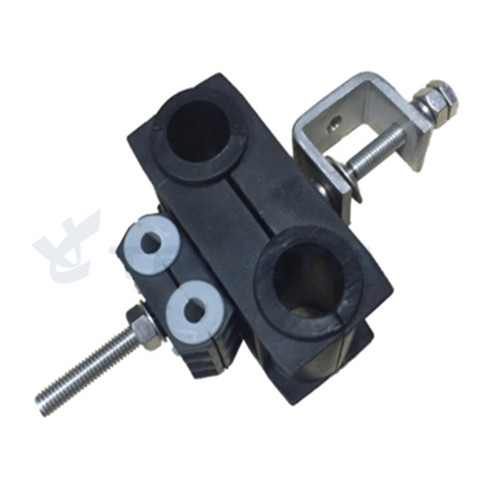

Combined Feeder hangers double hole type clamp with stainless steel adapter

Product Description


Feeder clamps are widely used in site installation to fix RF coaxial feeder cables onto base towers (BTS). Telsto feeder clamps are designed for different BTS site installation and kinds of antenna system. The material of these products is high standard stainless steel and high quality plastics.

*Various stainless steel feeder clamps are applicable for fixing feeders.
*Made of high quality anti-acid steel.
*Modified plastics and non-rusting under any weather conditions.

Feeder cable double clamp for two pieces of 1/4", 3/8", 1/2", 5/8", 7/8", 1-1/4", 1-5/8" Coax

Operating temperature: -40° to 75°

Other avaliable size:  For 1/2", 3/8”, 7/8”, 1-1/4”, 1-5/8”, 2-1/4” RF coaxial cable

Product   Description Part No.
Single Type   For 1/2" cable, 1 run   TEL-FC-S-1x1/2
  For 1/2" cable, 2 runs   TEL-FC-S-2x1/2
  For 1/2" cable, 3 runs   TEL-FC-S-3x1/2
  For 7/8" cable, 1 run   TEL-FC-S-1x7/8
  For 7/8" cable, 2 runs   TEL-FC-S-2x7/8
  For 7/8" cable, 3 runs   TEL-FC-S-3x7/8
  For 1-1/4" cable, 1 run   TEL-FC-S-1x5/4
  For 1-1/4" cable, 2 runs   TEL-FC-S-2x5/4
  For 1-1/4" cable, 3 runs   TEL-FC-S-3x5/4
  For 1-5/8" cable, 1 run   TEL-FC-S-1x13/8
  For 1-5/8" cable, 2 runs   TEL-FC-S-2x13/8
  For 1-5/8" cable, 3 runs   TEL-FC-S-3x13/8
Double Type   For 1/2" cable, 2 runs   TEL-FC-D-2x1/2
  For 1/2" cable, 4 runs   TEL-FC-D-4x1/2
  For 1/2" cable, 6 runs   TEL-FC-D-6x1/2
  For 7/8" cable, 2 runs   TEL-FC-D-2x7/8
  For 7/8" cable, 4 runs   TEL-FC-D-4x7/8
  For 7/8" cable, 6 runs   TEL-FC-D-6x7/8
  For 1-1/4" cable, 2 runs   TEL-FC-D-2x5/4
  For 1-1/4" cable, 4 runs   TEL-FC-D-4x5/4
  For 1-1/4" cable, 6 runs   TEL-FC-D-6x5/4
  For 1-5/8" cable, 2 runs   TEL-FC-D-2x13/8
  For 1-5/8" cable, 4 runs   TEL-FC-D-4x13/8
  For 1-5/8" cable, 6 runs   TEL-FC-D-6x13/8
Compositive Parts
SN Part Name Spec Qty Material
1 Angle Adapter   1 SS304
2 Bolt M8 1 SS304
3 Gasket φ
20
1 SS304
4 Plastic Clamping Pieces 1/2" 4 PP
5 Screw M8 1 SS304
6 Nut M8 3 SS304
7 Washer φ
8
2 SS304
8 Spring Washer φ
8
1 SS304



Packaging & Shipping


Packing: 1pcs per Pvc bag, 50 pcs per carton, then packed in pallet.

PVC bag, Export Carton, Big quantity with pallet.

Shipping by sea, by air or by courier. From Shanghai Port

Quick Details


Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Application:Telecommunication
Material:Stainless Steel
Size:1/4"-1-5/8"
Cable type:Coaxial Cable Power Cable
Product Name:Feeder Cable Clamp
Color:Black
Packaging & Delivery
Packaging Details:PVC bag, Carton, Pallet

, , , , ,
