Communication Equipment Earthing Kit Products

Product Description

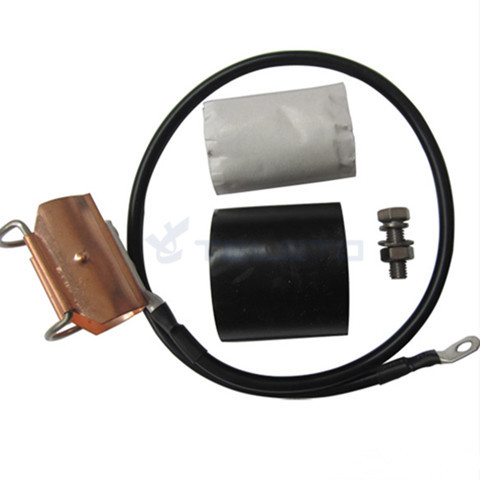

Clip-on ground kits are an advanced type for coaxial cable grounding, providing an easy installation as well as dependable protection of coaxial cable system. The designed clip design and pre-formed strap allow the clip-on ground kits to be easily slipped over the coaxial cable’s outer conductor.

The latch was optimized to provide a secure fix maximizing performance by ensuring proper contact surface area and pressure.

Contact: high quality copper strap;
Grounding clamp: per-formed copper strap;
Grounding / earthing cable:16mm2 or 25mm2 BV or BVR copper wire for earthing to buss bar;
Copper lugs: 16-8, 25-8 tin plated copper lugs to connect to grounding bar;
Installation accessories: stainless steel 304.

Product  Description Part No.
Click-on Type

including butyl and electric tape

for  1/4" coaxiable cable   TEL-GK-C-1/4
for  1/2" coaxiable cable   TEL-GK-C-1/2
for  7/8" coaxiable cable   TEL-GK-C-7/8
for  1-1/4" coaxiable cable   TEL-GK-C-5/4
for  1-5/8" coaxiable cable   TEL-GK-C-13/8

1. Each kit include grounding kit, installation harwares,

2. Weatherproofing kit are selectable between China brand and 3M

Application:


Grounding for following indoor / outdoor cable;

1, Telecom cable

2, Fiber cable

3,Coaxial cable

4, Feeder cable

5, Hybrid cable

6, Corrugated cable

7, Smooth cable

8, Braid cable

Quick Details


  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Telsto
  • Nominal impulse discharge current: 70KA
  • Contact resistance: ≤2mΩ
  • Insulation resistance: 500MΩ
  • Grounding wire size: AW6 / 16mm2
  • Grounding wire length: According to customer's requirements
  • Temp. range: -30℃~+60℃
,
