Copper Ring Buckle Type/ Grounding kit

Product Description

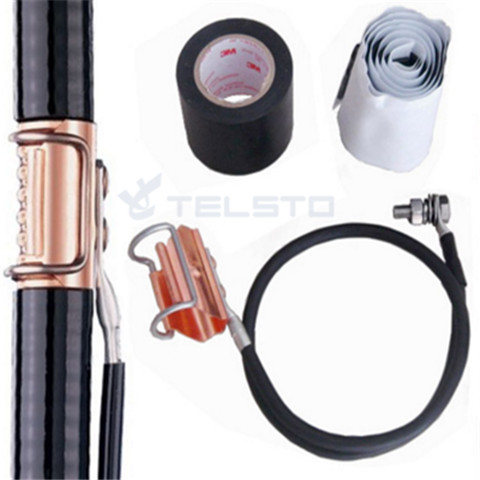

Clip-on ground kits are an advanced type for coaxial cable grounding, providing an easy installation as well as dependable protection of coaxial cable system. The designed clip design and pre-formed strap allow the clip-on ground kits to be easily slipped over the coaxial cable’s outer conductor.

The latch was optimized to provide a secure fix maximizing performance by ensuring proper contact surface area and pressure.

Piece parts                                       Materials
Jump ring                                           Stainless steel SUS304
Grounding strap                                 Copper
Rivet /Bolt kit                                     Copper/ Stainless steel SUS304
Cable lug M6                                     Copper, Tin-plated
Heat shrinkable tube                          Polyolefin
Grounding cable 16mm2                    Copper (Conductor)
PVC (Jacket), Black
Single hole Cable lug M8                    Copper, Tin-plated
Bolt M8×25                                         Stainless steel SUS304,passivation
Nut M8                                                Stainless steel SUS304,passivation
Spring washer 8                                  Stainless steel SUS304,passivation
Plain washer 8                                     Stainless steel SUS304,passivation
Sealing                                               0.19MMX50MMX10M  Tape

3MMX60MMX0.6M clay



Mechanical specifications
Contact Resistance ≤4mΩ
Insulation Resistance 500MΩ
Nominal Impulse Discharge Current 80KA
Working Voltage 450v
Packing
Packing status Assembled
Label Logo + drawing + barcode
Packing quantity 1 pcs in plastic bag
Packing detail Plastic bag + carton + pallet

Quick Details


Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Keyword:Feeder Grounding kit
Material:copper
Grounding wire:16mm2 copper grounding wire

Product  Description Part No.
Click-on Type

including butyl and electric tape

for  1/4" coaxiable cable   TEL-GK-C-1/4
for  1/2" coaxiable cable   TEL-GK-C-1/2
for  7/8" coaxiable cable   TEL-GK-C-7/8
for  1-1/4" coaxiable cable   TEL-GK-C-5/4
for  1-5/8" coaxiable cable   TEL-GK-C-13/8
