Product Description
Termination is designed to absorb all the incident power with very little reflection,effectively terminating the line or port in its characteristic impedance.Termination are used in a wide variety of measurement systems;any port of a multi-port microwave device that is not involved in the measurement should be terminated in its characteristic impedance in order to ensure an accurate measurement.Terminations are also used in devices such as directional couplers and isolators. High power versions are used in transmitter applications as dummy loads.
Termination offered by Telsto are matched to 50 ohms characteristic impedance. A wide selection of terminations from stock ready for you just-in-time shipments.With power ratings from 2 to 300 watts fitted with N or DIN-Male or female connectors.Our terminations are designed to exceed commercial specifications.
RF TERMINATION LOAD/DUMMY LOAD KEY FEATURES
1. Finned Termination
2. Powers 2W to 300W
3. Low Specified PIM
4. N and DIN Connectors
5. High Reliability
6. Economic price

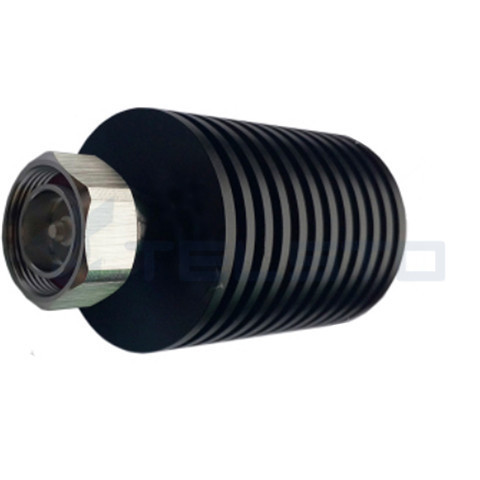

Dummy Load-DC-3GHz 5/25/50/100/200W N,DIN type
| Product | Description | Part No. |
| Termination Load | N Male / N Female, 2W | TEL-TL-NM/F2W |
| N Male / N Female, 5W | TEL-TL-NM/F5W | |
| N Male / N Female, 10W | TEL-TL-NM/F10W | |
| N Male / N Female, 25W | TEL-TL-NM/F25W | |
| N Male / N Female, 50W | TEL-TL-NM/F50W | |
| N Male / N Female, 100W | TEL-TL-NM/F100W | |
| DIN Male / Female, 10W | TEL-TL-DINM/F10W | |
| DIN Male / Female, 25W | TEL-TL-DINM/F25W | |
| DIN Male / Female, 50W | TEL-TL-DINM/F50W | |
| DIN Male / Female, 100W | TEL-TL-DINM/F100W |
Quick Details
Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Frequency Band:DC-3GHz
VSWR:≤1.2:1
Average Power:5W
Connector Type:N / Din male or female
Impedance:50 Ohm
Application:Telecommunication
