EPDM Cold Shrink Tube similar as 3m 8420

Product Description

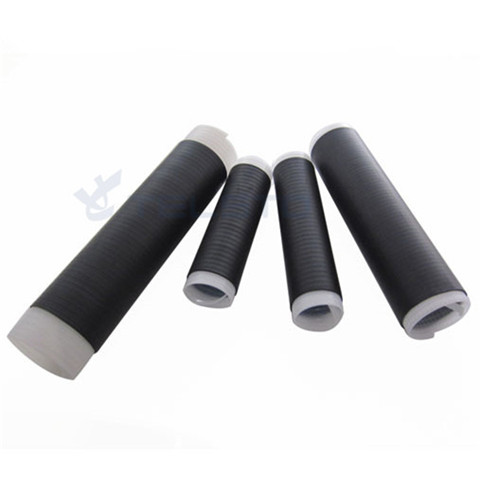

Telsto cold shrink tube is a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre-stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber, which contains no chlorides or sulphurs.

Telsto Cold Shrink Splice Cover Kits are designed to be an easy-to-install, safe and fast method of covering splices on Spacer Cable. The tubes are open-ended rubber sleeves which are factory-expanded and assembled onto removable plastic cores. After the tube has been positioned for installation over an in-line splice, the core is removed, thus allowing the tube to shrink and seal the splice.

Features :


1. Simple installation, requires noly workman's hands.
2. No tool or heat required.
3. Seals tight, retains its resiliency and pressure even after years of aging and exposure.
4. Resists moisture.
5. Wide range, size accommodation.
6. Resists acids and alkalies.
7. Resists ozone and ultraviolet light.
8. Resists fluid splashes.
9. Resists fire - will not support flame.

Dimension
3M item Telsto Item Tube Dia(mm) Tube length(mm) Cable range(mm)
8423-6 TEL-CST-20-6 20 152 (6") 7.8-14.3
8425-8 TEL-CST-25-8 25 203 (8") 10.1-20.9
---- TEL-CST-32-9 32 229 (9") 13.0-25.4
---- TEL-CST-32-11 32 279 (11") 13.0-25.4
8426-9 TEL-CST-35-9 35 229 (9") 13.9-30.1
8426-11 TEL-CST-35-11 35 279 (11") 13.9-30.1
8427-6 TEL-CST-40-6 40 152 (6") 17.5-35.1
8427-12 TEL-CST-40-12 40 305 (12") 17.5-35.1
8427-16 TEL-CST-40-16 40 406 (16") 17.5-35.1
8428-6 TEL-CST-53-6 53 152 (6") 24.1-49.2
8428-12 TEL-CST-53-12 53 305 (12") 24.1-49.2
8428-18 TEL-CST-53-18 53 457 (18") 24.1-49.2
8429-6 TEL-CST-70-6 70 152 (6") 32.2-67.8
8429-9 TEL-CST-70-9 70 229 (9") 32.2-67.8
8429-12 TEL-CST-70-12 70 305 (12") 32.2-67.8
8429-15 TEL-CST-70-15 70 381 (15") 32.2-67.8
8429-18 TEL-CST-70-18 70 457 (18") 32.2-67.8
8430-9 TEL-CST-104-9 104 229 (9") 42.6-93.7
8430-18 TEL-CST-104-18 104 457 (18") 42.6-93.7

Quick Details


Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Type:Insulation Sleeving
Application:Low Voltage, for cable protection
Rated Voltage:1KV EPDM Cold Shrink Tube
