EPDM cold shrink tubing

Product Description


EPDM cold shrink tubing

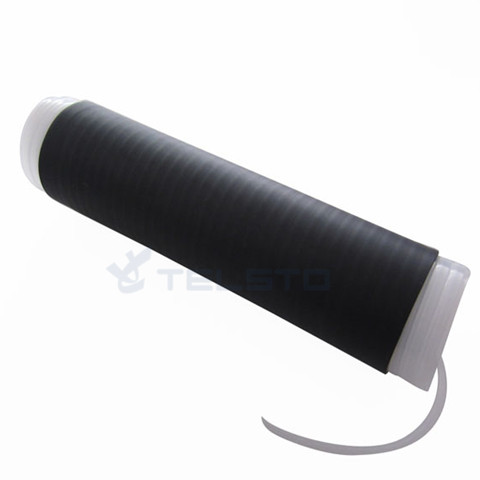

Telsto EPDM Cold Shrink Tubings are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre-stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber, which contains no chlorides or sulphurs.

Features :

1. Simple installation, requires noly workman's hands.
2. No tool or heat required.
3. Seals tight, retains its resiliency and pressure even after years of aging and exposure.
4. Resists moisture.
5. Wide range, size accommodation.
6. Resists acids and alkalies.
7. Resists ozone and ultraviolet light.
8. Resists fluid splashes.
9. Resists fire - will not support flame.

Dimension

3M item Telsto Item Tube Dia(mm) Tube length(mm) Cable range(mm)
8423-6 TEL-CST-20-6 20 152 (6") 7.8-14.3
8425-8 TEL-CST-25-8 25 203 (8") 10.1-20.9
---- TEL-CST-32-9 32 229 (9") 13.0-25.4
---- TEL-CST-32-11 32 279 (11") 13.0-25.4
8426-9 TEL-CST-35-9 35 229 (9") 13.9-30.1
8426-11 TEL-CST-35-11 35 279 (11") 13.9-30.1
8427-6 TEL-CST-40-6 40 152 (6") 17.5-35.1
8427-12 TEL-CST-40-12 40 305 (12") 17.5-35.1
8427-16 TEL-CST-40-16 40 406 (16") 17.5-35.1
8428-6 TEL-CST-53-6 53 152 (6") 24.1-49.2
8428-12 TEL-CST-53-12 53 305 (12") 24.1-49.2
8428-18 TEL-CST-53-18 53 457 (18") 24.1-49.2
8429-6 TEL-CST-70-6 70 152 (6") 32.2-67.8
8429-9 TEL-CST-70-9 70 229 (9") 32.2-67.8
8429-12 TEL-CST-70-12 70 305 (12") 32.2-67.8
8429-15 TEL-CST-70-15 70 381 (15") 32.2-67.8
8429-18 TEL-CST-70-18 70 457 (18") 32.2-67.8
8430-9 TEL-CST-104-9 104 229 (9") 42.6-93.7
8430-18 TEL-CST-104-18 104 457 (18") 42.6-93.7

Quick Details


Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Type:Insulation Sleeving
Material:EPDM rubber cold shrink tubing, EPDM cold shrink tubing
Application:Low Voltage, for cable protection
Rated Voltage:1KV
Tensile Strength:good
Product Feature:Alkali Resistance
Packing:bulk
Lead time:5-7 days
