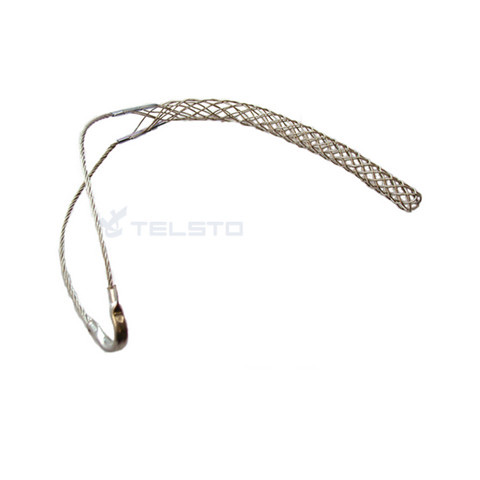

Hoisting grip for supporting feeder coaxial cable

Product Description


Hoisting grip for supporting feeder coaxial cable

Application : coax support
Size : 3/8" to 2-1/4"
Feature : Lace up at any point on coax / Pre-laced to supporting coax
Design : Open / Closed mesh with single eye support
Material : Stainless steel or Tinned bronze
Include : Mesh Grip, lacing wire, instruction

Support hoisting grips feature a closed-mesh design which simplifies installation over traditional split, lace-up style grips. The unique design allows the support hoisting grip to slip over an unterminated end of coax. The grip securely tightens when pulled, providing an effective means to hoist coax into position and to provide additional support for the coax once in place.

Lace-up hoisting grips provide an effective means for hoisting coax and elliptical waveguide into position and can be utilized to provide additional support once in place. The lace-up design allows the hoisting grip to be attached even when the run has been connectorized and facilitates easy positioning at 200 (61m) increments on long coax runs..

Pre-laced hoisting grip


Application : coax support / Lace up at any point on coax
Design : Closed / Open mesh with single eye support
Material : Stainless steel or Tinned bronze
Include: hoisting mesh, clamp, installation instruction

Lace up hoisting grip


Feature : Lace up at any point on coax
Design : Open mesh with single eye support
Material : Stainless steel or Tinned bronze
Include : Mesh Grip, Lacing wire, Installation instructions

Product  Description Part No.
Lace-up Type 304 Stainless Steel Material, for  1/2" coaxiable cable   TEL-HG-L-1/2
304 Stainless Steel Material, for  7/8" coaxiable cable   TEL-HG-L-7/8
304 Stainless Steel Material, for  1-1/4" coaxiable cable   TEL-HG-L-5/4
304 Stainless Steel Material, for  1-5/8" coaxiable cable   TEL-HG-L-13/8
Pre-Laced Type 304 Stainless Steel Material, for  1/2" coaxiable cable   TEL-HG-P-1/2
304 Stainless Steel Material, for  7/8" coaxiable cable   TEL-HG-P-7/8
304 Stainless Steel Material, for  1-1/4" coaxiable cable   TEL-HG-P-5/4
304 Stainless Steel Material, for  1-5/8" coaxiable cable   TEL-HG-P-13/8

Quick Details


Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Model Number:lace up & pre-laced
Size:1/4" to 2-1/4"
Application:for supporting coaxial cable
Material:stainless steel & tinned-copper
Sample:Free for stock hoisting grip
