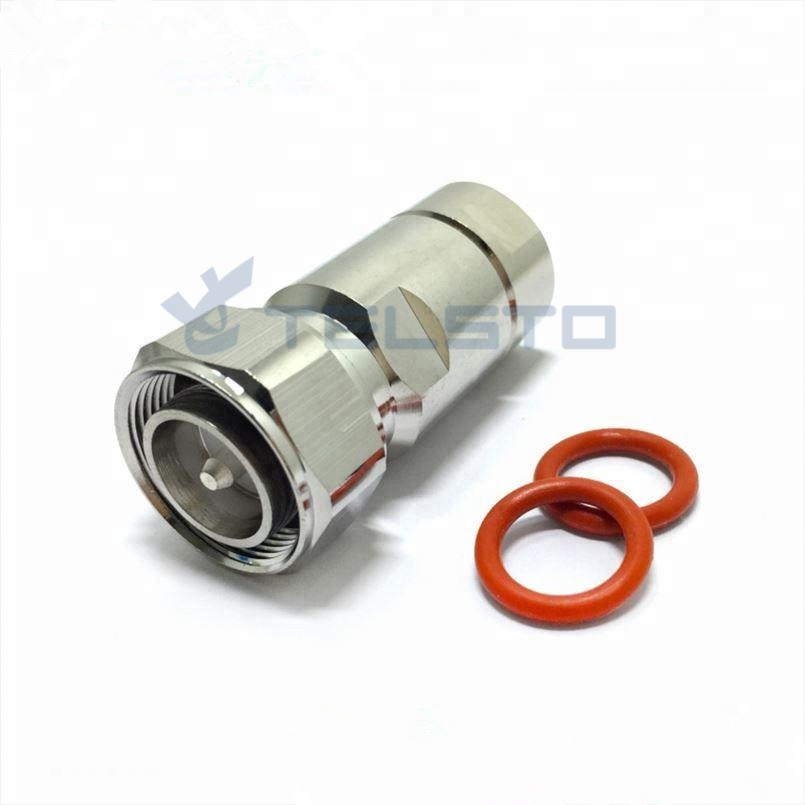

mini din 4.3/10 male plug connector clamp for 1/2″ coaxial cable RF connector

MINI din type male straight connector for 1/2 super-flexible rf coaxial cable

☀ RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM) .
☀ We focus on coaxial assemblies.
☀ Our custom RF cable assemblies are built-in and shipped worldwide.
☀ RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .
☀ RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
☀ RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.
☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department

 MINI din connector for 1/2 super-flexible rf cable
Temperature Range
-55~+155°C (PE Cable -40~+85°C)
Impedance
50Ω
0-Frequency Range
0-6GHz
Withstanding Voltage
2700V r.m.s   at sea level
Working Voltage
4000Vm.a.x   at sea level
Insulation Resistance
≥ 5000 MΩ
Durability
≥ 500(cycles)
Contact resistance:
Center Contact   ≤ 5mΩ
Outer Contact   ≤ 5mΩ
Voltage Standing Wave Ratio:
Straight
        ≤ 1.2
Right angle
       ≤ 1.3

Note: We can provide other materials and plating specifications according to customers'requirements.



We are sincere suppliers, by the good faith to win customers' trust in the world, protect the interests of the customers and can have a better and more long-term cooperation.

Factory aim: Let the quality become the sole measure of company strength.We are using the latest production technology, standardized management, strict censorship, standard packing, in order to meet the maximum needs of customers as the goal.



We can do it:

• Low loss Superflexible Cable Assembly With Connector factory sell directly
• Long-term,strong and steady supplying ability
• Delivery time: 1-2 working days
• Do as your requirements on package,brand or other designs
• Strong sales promotion policy
• Ex-factory price and competitive price
• We can provide you a good survice
• Replying you asap.(will reply you 10-20 mins on the basis of getting your require.)

Customization advantages Reliable performance Perfect production management system
(ISO9001,ISO14001) we have experience about RF components more than 20 years
Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.

FAQ

Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.

Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.If use customer brands, we will take a 3-5days to prepare materials and mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair.If do not have engineers, please send back the items, we can repair the items for you.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order.

Quick Details

Place of Origin: Shanghai, China (Mainland)
Brand Name: Telsto
Type: DIN
Application: RF
Gender: Male
Product name: $title$
Color: silver
Material: Brass
Certificate: ISO9001/CE/ROHS/FCC
Connector type: MINI DIN CONNECTOR
Plating: Nickel /Golden Palting
MOQ: 1 Piece
ODM/DEM: Offered
Insulation Resistance: ≥ 5000 MΩ
Temperature Range: -55~+155°C (PE Cable -40~+85°C

, , , , , , , ,
