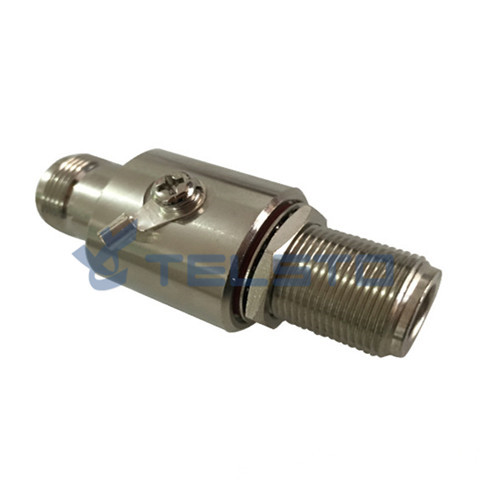

N female to N female Coaxial RF Lightning Surge Arrester

DETAILS


N female to N female Coaxial RF Lightning Surge Arrester

    N female to N female Coaxial RF Lightning Surge Arrester  can be integrated directly into the cabling system and provide reliable surge protection in case of over voltages. Our surge arrestors provide excellent lightning protection and outstanding RF performance. All designs have low return loss, low insertion loss and low intermodulation. We offers λ/4 wave shorting stubs and gas discharge tube type for your selection.

Telsto series of DC pass RF lightning and surge protection products with an extended frequency operating band from DC to 3000MHz. Female to Female arresters are designed for installation in-line between an antenna and feeder cable. By installing at the tower-top position, this arrester helps protect not only the end user equipment, but the cabling itself.

Electrical Specifications


Frequency Range: DC - 3GHz
Input Impedance: 50Ω
VSWR: <1.5:1 DC-3GHz
Insertion Loss: <0.48dB DC-3GHz
Maximum impluse discharge current:20KA(8/20 μ s)

Mechanical/Environmental


Construction: Ni plated
Connector: N Male to N Female
Temperature: -55 to +85ºC


Surge arrestors are designed to provide excellent lightning protection and outstanding RF performances. Telsto Gas tube lightening surge arresters can be integrated directly into the cabling system and provide reliable surge protection in case of over voltages. Our surge arrestors provide excellent lightning protection and outstanding RF performance. All designs are low return loss, low insertion loss and low intermodulation.

*High quality materials
*Excellent RF performance
*Total weatherproof
*Available with type N or 7/16 DIN type
*Waterproof
*Environment resistance ensures long life and consistent performance

Product  Description Part No.

Surge Arrester

DIN 7/16 Male to Female Gas Tube TEL-SA-DINM.F
N Female to N Female TEL-SA-NF.F
N Male to N Female TEL-SA-NM.F
SMA Female to Female TEL-SA-SMAF.F
SMA Female to Male TEL-SA-SMAF.M
SMA Male to Male TEL-SA-SMAM.M
