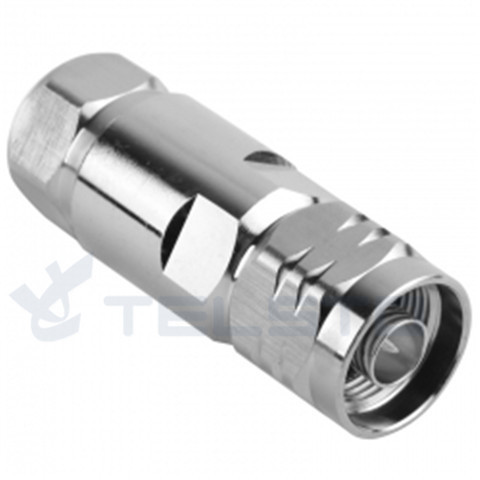

N type RF male connector for 1/2 superflexible coaxial cable

Product Description

Model: TEL-NM.12S-RFC

Description:

N Male connector for 1/2’’ Superflexible RF cable


Product Application
N connectors available with both male and female, are designed and manufactured for GSM, CDMA, TD-SCDMA sites.

Specification

N male connector for 1/2" superflexible coaxial cable

1. The standards of Connectors: In accordance with IEC60169-16

2. Interface screw thread: 5/8-24UNEF-2A3. Material and Plating:
Body: brass, Ni/Au plated
Insulator: teflon
Inner conductor: bronze, Au plated

4. Working environment
Working temperature: -40~+85℃
Relative moisture: 90%~95%(40±2℃)
Atmospheric pressure: 70~106Kpa
Salt mist: Continuous mist for 48 hours(5% NaCl)

5. Electrical characteristics
Nominal impedance 50Ω
Frenquency range: DC-3G
Contact resistance(mΩ): Outer conductor ≤0.25, Inner conductor ≤1
Insulation resistance(MΩ)≥5000
Withstanding voltage AC(V/min)2500
VSWR(0-3GHz) ≤1.10

Quick Details


Place of Origin:shanghai, China (Mainland)
Brand Name: Telsto
Model Number:TEL-NM.12S-RFC
Type:N
Application:RF
Gender:Male
Product name:N type RF male connector for 1/2 superflexible coaxial cable
Frequency range:0-6GHz
Outer conductor material:Brass
Inner conductor material:Bronze
PIM:Less than -155dBc
VSWR:Less than 1.10
Pin plating:Gold/Silver/Au
Durability:500 Cycles
Package:Carton

Material and Plating
Center contact Brass / Silver Plating
Insulator PTFE
Body & Outer Conductor Brass / alloy plated with tri-alloy
Gasket Silicon Rubber
Electrical Characteristics
Characteristics Impedance 50 Ohm
Frequency Range DC~3 GHz
Insulation Resistance ≥5000MΩ
Dielectric Strength ≥2500 V rms
Center contact resistance ≤1.0 mΩ
Outer contact resistance ≤1.0 mΩ
Insertion Loss ≤0.12dB@3GHz
VSWR ≤1.08@-3.0GHz
Temperature range -40~85℃
PIM  dBc(2×20W) ≤-155 dBc(2×20W)
Waterproof IP67
, , , ,
