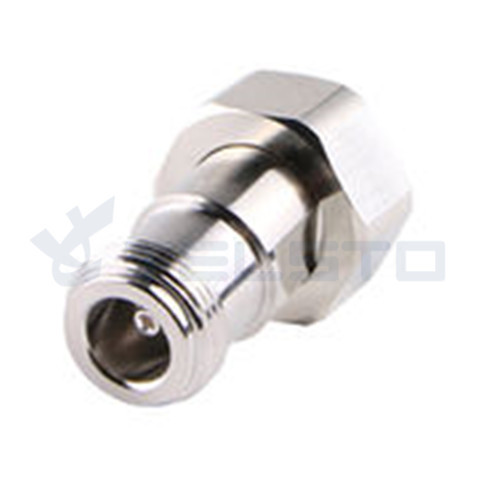

Rf coaxial 4.3/10 mini din male to n female connector adapter

Specification:

Rf coaxial 4.3-10 mini din male to n female connector adapter

Product Specification
Product Name N Female to 4.3/10 Male
Applicable Standards
Interface According to N:IEC 60169-16,4.3/10:IEC 61169-54
Electrical Data
Nominal Impedance 50Ω
Freqency Range DC to 6 GHz
Insertion Loss ≤0.10dB
VSWR ≤1.1(DC to 3GHz)
Insulation Resistance ≥5000MΩ
Center Contact Resistance ≤1.5mΩ
Ourter Contact Resistance ≤1mΩ
Mechanical
Mating Cycles ≥500
Environmental
Temperature Range -40~+85℃
Materials/Finish
Center Conductor Beryllium bronze/Gold plated
Body Brass/Gold plated
Dielectric PTFE

Quick Details


Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number:N Female to 4.3/10 Male
Type:Adapter
Application:RF
Gender:N Female to 4.3/10 Male
Center contact:Tin bronze/Three element alloy plated
Body:Brass/Three element alloy plated
Dielectric:PTFE
Other metal parts:Brass/Three element alloy plated
Nominal Impedance:50 Ω
Freqency Range:DC to 6GHz
Insertion Loss:≤0.10dB
VSWR:≤1.1(DC to 3GHz)
Mating Cycles:≥500
Temperature Range:-40-+85℃


Telsto RF Adapter has an operational frequency range of DC-6 GHz, offers excellent VSWR performance and Low Passive Intermodulation. This makes it ideally suited for use in cellular basestations, distributed antenna systems (DAS) and small cell applications.

4.3-10 types for your choices:

Product Description Part No.
RF Adapter 4.3-10 Female to Din Female Adapter TEL-4310F.DINF-AT
4.3-10 Female to Din Male Adapter TEL-4310F.DINM-AT
4.3-10 Male to Din Female Adapter TEL-4310M.DINF-AT
4.3-10 Male to Din Male Adapter TEL-4310M.DINM-AT





, , , , , ,
