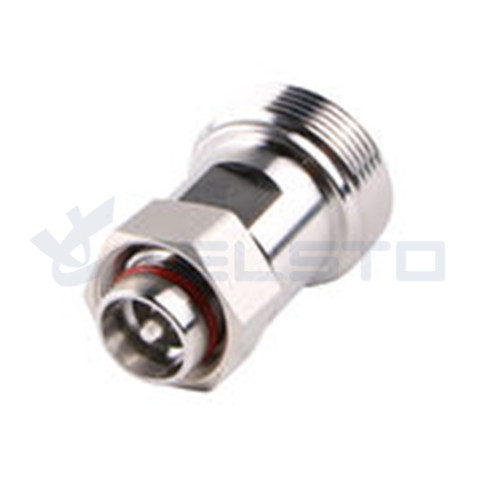

Rf coaxial mini din 4.3-10 male to 7/16 female Connector adaptor

Product Description


4.3-10 Mini DIN male to 7/16  Female Connector Adapter
Description 4.3-10 Mini DIN male  to 7/16 Female Connector Adapter
Model No. TEL-4310M.DINF-AT
Connector Type Connector A: 7/16 female Connector
Connector B: 4.3-10 male Connector
Connector Interface  IEC 60169-4/ IEC61169-54
Electrical
Characteristic Impedance 50ohm
Insertion Loss ≤0.08dB
Typical Frequency Range DC-6GHz
VSWR    ≤1.10@DC-3000MHz
Intermodulation 3rd (PIM3) ≤ -155dBc@2×20W
Durability ≥500 cycles
Material and Plating
Parts Name Material Plating
Body Brass Tri-alloy
Insulator PTFE
Inner Conductor Phosphor Bronze Ag
0Environmental
Operating Temperature -45 ℃-85  ℃
Weatherproof Rate IP67
RoHs (2002/95/EC) Compliant  by exemption

Quick Details


Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number:TEL-4310M.DINF-AT
Type:4.3-10 to 7/16
Application:RF
Gender:adaptor
Material:Brass and Teflon
Plating:sliver and Tri-alloy
Product name:4.3-10 male to 7/16 female Connector
Intermodulation 3rd:155dBc
VSWR:≤1.10@DC-3000MHz
Impedance:50ohm
Frequency Range:DC-6GHz
Weatherproof Rate:IP67
HS code:85369090

Low PIM 7/16 DIN Male to 4.3-10 Female Adapter



Telsto RF Adapter has an operational frequency range of DC-3 GHz, offers excellent VSWR performance and Low Passive Intermodulation {Low PIM3 ≤-155dBc(2×20W)} . This makes it ideally suited for use in cellular basestations, distributed antenna systems (DAS) and small cell applications.

Product Description Part No.
RF Adapter 4.3-10 Female to Din Female Adapter TEL-4310F.DINF-AT
4.3-10 Female to Din Male Adapter TEL-4310F.DINM-AT
4.3-10 Male to Din Female Adapter TEL-4310M.DINF-AT
4.3-10 Male to Din Male Adapter TEL-4310M.DINM-AT
, , , ,
