SC/APC to SC Fiber Optic Patch Cable – 1M / 3.28ft – Single Mode – SIMPLEX – Commercial QUALITY



Product Description

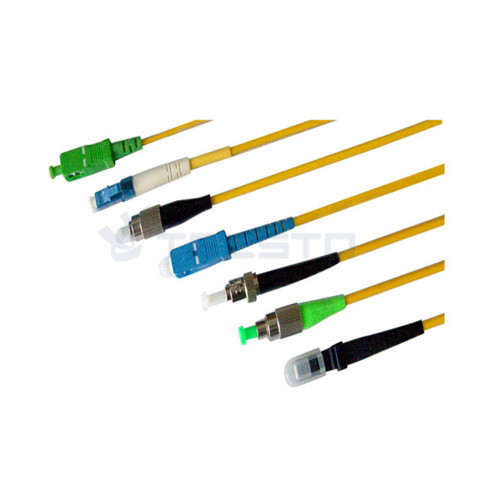

Optical Fiber Patch Cord consists of a single-mode or multi-mode fiber cord and two connectors, one at each end.It is available in both Single mode and multimode versions,come with a zirconia ceramic ferrule with pre-polished UPC or APC.

Features


Low insertion loss, high return loss

Excellent mechanical endurance

High credibility and stability

Good in repeatability and exchangeability

Application


Testing equipment

FTTX+LAN

Optical fiber CATV

Optical communication system

Telecommunication

Quick Details


Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Type:Coaxial
Number of Conductors:1
Color:Yellow
Fiber type:Single Mode
Fiber count:1
Conductor:SC/UPC -SC/UPC
Meterials:PVC/LZSH
Cable Diameter:0.9/2.0/3.0mm
Cable length:1, 2, 3 meter or customized
Application:Telecommunication
Length:0.5m/1m/2m/5m/customized

Simplex or duplex or multi fiber assemblies
Riser or Plenum rated, LSZH and RoHS cables available
Low insertion loss, IEC, TIA/EIA, Telcordia compliant
Custom fiber optic cable lengths and jacket colors
Various fiber types and wavelengths, typical 9/125 single mode, 50/125 multimode and 62.5/125 multimode
0.9 / 1.8 / 2.0 / 3.0 / mm outer diameter fiber optic cables
PC, UPC, and APC polish types
Good packing, competitive prices and very fast delivery
100% geometry test anc IEC cleaning test are available
OEM service is avaibable

Applications


1.Access Network

2.Telecom/CATV Systems

3.FTTx

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials LSZH/OFNR/PVC
Connector Type SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Losss(dB) ≤ 0.25dB(PC/UPC/APC) ≤ 0.3dB(PC/UPC)
Return Loss(dB) ≥50dB(PC/UPC)
≥60dB(APC)
≥40dB(PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.
, ,
