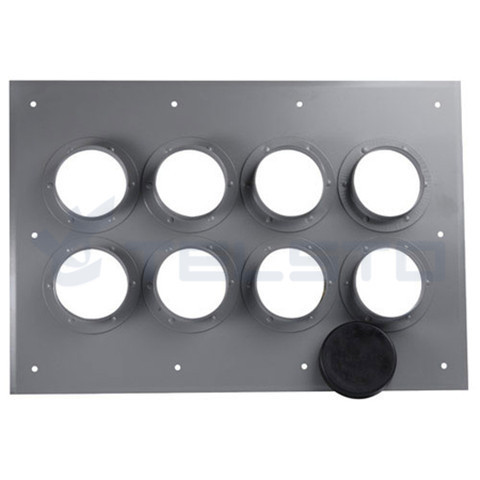

Well quality anti-corrosion Feeder Cable Entry plate / aluminum alloy wall entry

Hot selling communication auxiliary material Cable Entry plate / Feeder Cable Entry plate:

Application


Apply to all sorts of cable into the engine room, thus play a role in sealing, apply to mobile base station, exchange, microwave station etc. kinds of engine room.

Material:

1, metal parts: high quality aluminum alloy plate or stainless steel

2, sealing element: top-quality rubber that high and low temperature resistant non-deformed and anti-aging capability

Feature:


1, adopt -55°C~+60°Ctemperature changing.

2, resistant to corrosion of corrosive gas, air, acid rain.

3, prevent the rain and outside moisture into the engine room through the gap between cable and sealing element or the gap between HLKC and wall. The grade of seal performance can reach IP65.

4, shield electromagnetism disturbing

5, provide all sorts of different types sealing element form a whole sealing part, meet different OD cable through a HLKC into the room

Installation instructions:


a. reserved a suitable hole, the detailed dimension refer to the product specification.

b. fix the seal plate into the reserved hole by anchoring.

c. put waterproof silica gel around the seal plate, the sealing effect will be better.

Product Hole Of Ports Wall Opening Overall Size Part No.
 1 1  4'' x 4''  5'' x 5'' TEL-EP-1x1
 2 2  4'' x 10'' 9.5''x 15.5'' TEL-EP-1x2
 3 3 4'' x 15'' 9.5'' x 20'' TEL-EP-1x3
 4 4  4'' x 20.5'' 9.5'' x 25.5'' TEL-EP-1x4
 5 4 9.5'' x 11'' 17.5'' x 17.5'' TEL-EP-2x2
 6 6 9.5'' x 15'' 17.5'' x 23'' TEL-EP-2x3
 7 8  9.5'' x 20.5'' 17.5'' x 25.5'' TEL-EP-2x4
 8 9 15'' x 15''  23'' x 23'' TEL-EP-3x3
 9 12 15'' x 20.5'' 25.5'' x 25.5'' TEL-EP-3x4
 10 12  9.5'' x 31.5'' 17.5'' x 39.5'' TEL-EP-2x6
 11 16 20.5'' x 20.5'' 25.5'' x 25.5'' TEL-EP-4x4
 12 18 15'' x 31.5''  25.5'' x 39.5'' TEL-EP-3x6
 13 24  20.5'' x 31.5'' 31'' x 39.5'' TEL-EP-4x6
