Wireless Solutions Clip-on Grounding Kit for 1/2″ 7/8″ Coax Cable

Product Description


Clip-on ground kits are an advanced type for coaxial cable grounding, providing an easy installation as well as dependable protection of coaxial cable system. The designed clip design and pre-formed strap allow the clip-on ground kits to be easily slipped over the coaxial cable’s outer conductor.

The latch was optimized to provide a secure fix maximizing performance by ensuring proper contact surface area and pressure.

Contact: high quality copper strap;
Grounding clamp: per-formed copper strap;
Grounding / earthing cable:16mm2 or 25mm2 BV or BVR copper wire for earthing to
buss bar;
Copper lugs: 16-8, 25-8 tin plated copper lugs to connect to grounding bar;
Installation accessories: stainless steel 304.


Grounding kits protect BTS against lighting, Telsto grounding kits are fast-installed, easy and error-free with self-securing grounding strap. Grounding kit body facilitates a proper attachment to the coaxial cable, ensuring that the performance of the coaxial cable is not being compromised. The tin plated copper clip provides a secure, low resistance connection to the cable outer conductor and the field-installable lug allows for custom ground wire lengths.

*Various types
*Fast installation
*Perfect lighting protection
*Total weather proofing

Product  Description Part No.
Click-on Type

including butyl and electric tape

for  1/4" coaxiable cable   TEL-GK-C-1/4
for  1/2" coaxiable cable   TEL-GK-C-1/2
for  7/8" coaxiable cable   TEL-GK-C-7/8
for  1-1/4" coaxiable cable   TEL-GK-C-5/4
for  1-5/8" coaxiable cable   TEL-GK-C-13/8

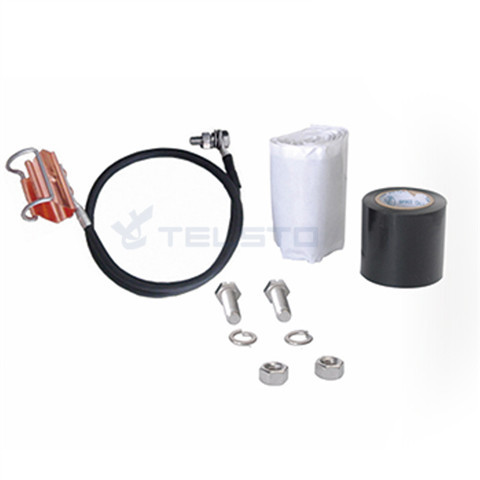

1. Each kit include grounding kit, installation harwares,

2. Weatherproofing kit are selectable between China brand and 3M

Application:


Grounding for following indoor / outdoor cable;

1, Telecom cable

2, Fiber cable

3,Coaxial cable

4, Feeder cable

5, Hybrid cable

6, Corrugated cable

7, Smooth cable

8, Braid cable

Quick Details


Place of Origin: Shanghai, China (Mainland)
Brand Name: telsto
Nominal impulse discharge current: 70KA
Contact resistance: ≤2mΩ
Insulation resistance: 500MΩ
Grounding wire size: AW6 / 16mm2
Grounding wire length: According to customer's requirements
Temp. range: -30℃~+60℃

, ,
