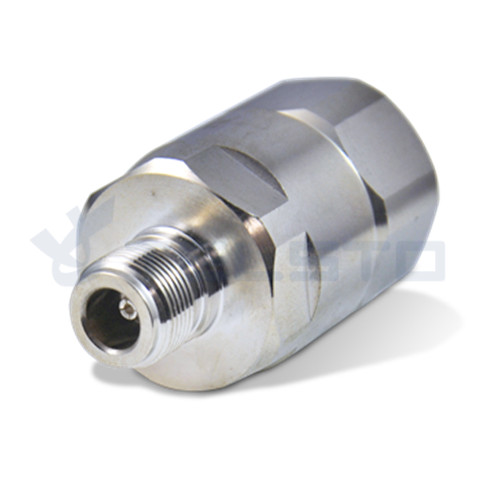

RF connector N Female to 7/8” coaxial cable connector

Product Description

N Female to 7/8'' coaxial cable connector

N series coaxial connectors are medium-sized, threaded coupling connectors designed for use from DC to 11 GHz. Their consistently low broadband VSWR have made them popular over the years in many applications. The N series connector is impedance matched to 50 ohm cables. Cable terminations are available in crimp, clamp and solder configurations. The threaded coupling ensures proper mating in applications where shock and extreme vibration are design considerations. N connectors are used in aerospace, broadcast audio and video applications as well as many microwave components such as filters, couplers, dividers, amplifiers and attenuators to name a few.

1.We focus on RF Connecter & RF Adapter &Cable Assembly &Antenna.

2.We have a vigorous and creative R&D team with the fullest mastery of the core technology.

We commit ourselves to the development of high performance connector production, and

dedicate ourselves to achieving a leading position in connector innovation and production.

3.Our custom RF cable assemblies are built-in and shipped worldwide

4.RF cable assemblies can be produced with many different connector types and custom lengths

depending on your needs and applications

5.If you require a special RF Connector ,RF Adapter  or RF Cable assembly configuration not found here,

you can create your own RF cable assembly configuration by calling our sales department.

Quick Details


Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Model Number:TEL-NF.78-RFC
Type:N
Application:RF
Gender:Female, Jack
Orientation:Straight
Frequency (GHz):DC~6
Impedance (Ohms):50ohm
Polarity:Standard
Working Temp:-40~85℃
Insulation resistance:≥5000mΩ
Durability:500 cycles

Material and Plating
Center contactBrass / Silver Plating
InsulatorPTFE
Body & Outer ConductorBrass / alloy plated with tri-alloy
GasketSilicon Rubber
Electrical Characteristics
Characteristics Impedance50 Ohm
Frequency RangeDC~6 GHz
Insulation Resistance≥5000MΩ
Dielectric Strength≥2500 V rms
Center contact resistance≤1.0 mΩ
Outer contact resistance≤0.25 mΩ
Insertion Loss≤0.1dB@3GHz
VSWR[email protected]GHz
Temperature range-40~85℃
PIM  dBc(2×20W)≤-155 dBc(2×20W)
WaterproofIP67
, , , , , , , , , , ,
