Product Description
Model: TEL-DINF.158-RFC
Description:

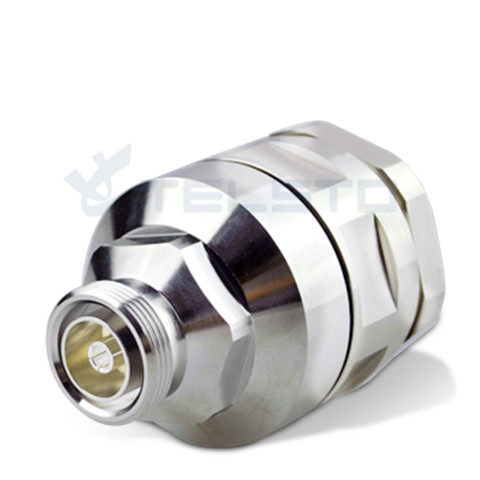

DIN Female connector for 1-5/8’’ flexible RF cable
Applications:
Antennas/ Base station /Broad cast /Cable assembly /Cellular /Components /Instrumentation/Microwave Radio/Mil-Aero
PCS/Radar /Radios/Satcom /Surge protection WLAN
Note:
1) These characteristics are typical but may not apply to all connectors
2) OEM and ODM are available
| Interface | ||||
| According to | IEC60169-4 | |||
| Electrical | ||||
| Characteristic Impedance | 50ohm | |||
| 1 | Frequency Range | DC-6GHz | ||
| 2 | VSWR | ≤1.15 | ||
| 3 | Dielectric withstanding voltage | ≥4000V RMS,50Hz,at sea level | ||
| 4 | Dielectric Resistance | ≥10000MΩ | ||
| 6 | Contact Resistance | Outer Contact≤1.5mΩ ;Center Contact≤0.4mΩ | ||
| 7 | PIM3 | ≤-155dBc | ||
| Mechanical | ||||
| 1 | Durability | Mating cycles ≥500 | ||
| Material and plating | ||||
| Description | Material | Plating | ||
| 1 | Body | Brass | Tri-alloy | |
| 2 | Insulator | PTFE | – | |
| 3 | Center conductor | phosphor bronze+ Beryllium bronze | Ag | |
| 4 | Other | Brass | Ni | |
| 5 | Gasket | silicon rubber | ||
| Environmental | ||||
| 1 | Temperature Range | -40℃~+85℃ | ||
| 2 | Watertightness | IP67 | ||
| 3 | Salt-fog test | 96h | ||
| Inspection | ||||
| 1.CNC machines ,advanced test equipment 2.All products are suit for ROHS. | ||||
Quick Details
Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number:TEL-DINF.158-RFC
Type:DIN
Application:RF
Gender:Female
Plating of body:white bronze after silver
Low PIM:-155dBc
VSWR:less than 1.15 up to 3G
Matched cable:1-5/8"feeder cable
Pin plating:Ag
Packing method:single package
Durability:500times
Impedance:50ohm
