Product Description

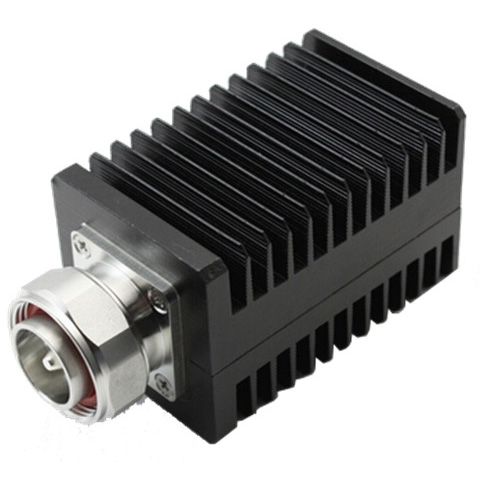

N male connector RF Coaxial 50 Ohm dummy load 50w
| n male connector rf coaxial dummy load 50w | |
| Model No. | TEL-TLNM50W |
| Electrical | |
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-3GHz |
| VSWR | ≤1.20 |
| Power Capacity | 50 Watt |
| RF Connector | N Male Connector |
| Material an Plating | |
| Parts Name | Material |
| Connector body | Brass |
| Insulator | PTFE |
| Inner Conductor | Phosphor Bronze |
| Housing | Aluminum |
| Environmental | |
| Operating Temp. | _45~ 85 ℃ |
| Storage Temp. | _60~120℃ |
| Weatherproof Rate | IP65 |
| Relative Humidity | 5%-95% |
| RoHs (2002/95/EC) | Compliant by exemption |
| Weight (Net) | 340g |
Quick Details
Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number:TEL-TLNM50W
Material:Brass and aluminium
connector type:n male connector
Product name:dummy load 50w
Impedance:50 Ohm
Frequency Range:DC-3GHz
Plating:Sliver,tri-matal and passivation
VSWR:1.20:1
Weatherproof Rate:IP65
HS code:85369090
Our Services
1.Reply your enquiry within 24 hours.
2.Payment model: T/T, L/C,Paypal and Western Union
3.Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT UPS...)
4.Lead(Delivery) time: Normally 14 days after getting order
5.Port of loading: Shanghai
6.Guarantee Period : Within 12 months after shipment.
7.Operating guide(Instruction)upon request.
8.Customized drawing ,sample and package can be done.
FAQ
Q:What about the quality of your products?
A: All products we supplied are strictly tested by our QC department before shipment.
Q:Can you offer samples to test before placing one formal order?
A:Samples for test purpose can be presented free provided that you bear the shipping cost.
Q:How long is usually your delivery time?
A: Our delivery time is usually within 14 days after we receive your order .
Q:What’s your Shipping Methods?
A: By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc.
Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7 business days.
Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products . You can send us the artwork
by email in JPEG or TIFF format.
Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
