Product Description

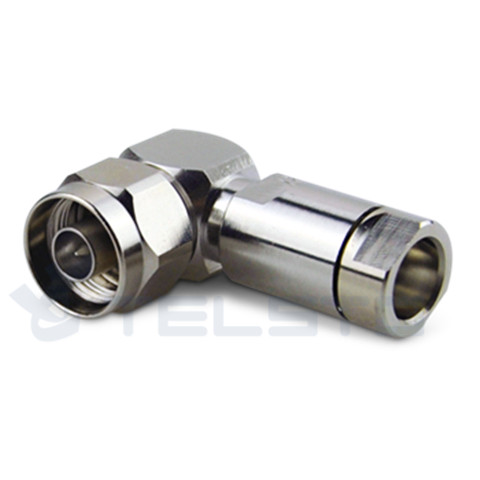

Rf coaxial N type right angle coaxial cable connector N male to 12 superflex cable
Model: TEL-NMA.12-RFC
Description:
N Male Angle connector for 1/2’’ flexible RF cable
| Material and Plating | |
| Center contact | Brass / Silver Plating |
| Insulator | PTFE |
| Body & Outer Conductor | Brass / alloy plated with tri-alloy |
| Gasket | Silicon Rubber |
| Electrical Characteristics | |
| Characteristics Impedance | 50 Ohm |
| Frequency Range | DC~3 GHz |
| Insulation Resistance | ≥5000MΩ |
| Dielectric Strength | ≥2500 V rms |
| Center contact resistance | ≤1.0 mΩ |
| Outer contact resistance | ≤0.25 mΩ |
| Insertion Loss | ≤0.12dB@3GHz |
| VSWR | ≤[email protected]GHz |
| Temperature range | -40~85℃ |
| PIM dBc(2×20W) | ≤-155 dBc(2×20W) |
| Waterproof | IP67 |
Our Service
1. We also customize special products to meet our clients' requirements. Just show us your drawing, sample or indicated details, we will produce it or please kindly send us your specific engineering parameters such as IMD, VSWR, plating etc.
2. Sample order
3. We will reply you for your inquiry in 24 hours.
2. Sample order
3. We will reply you for your inquiry in 24 hours.
Quick Details
Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number:TEL-NMA.12-RFC
Type:N
Application:RF
Gender:Male
Material:Brass and Teflon
Plating:Tri-alloy and sliver
Product name:N male connector
Connector type:N Connector
VSWR:≤1.10@DC-3000MHz
Impedance:50ohm
Frequency Range:DC-6GHz
Weatherproof Rate:IP67
HS code:85369090
