Specifications
1. 304 Stainless Steel construction
2. Three-run 3/4 Snap-In holes for snap-in hanger
3. 3/8 holes for butterfly hanger
Description

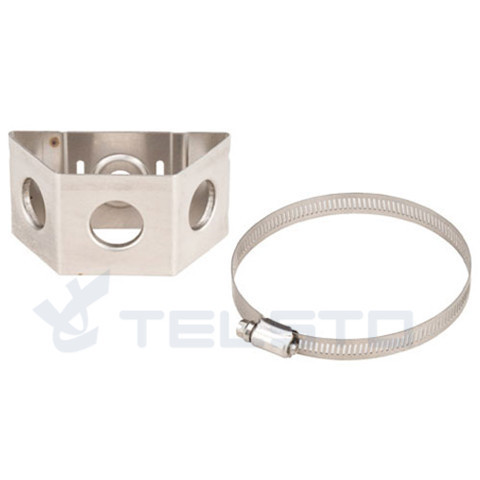

1. 304 Stainless Steel trapezoid Snap-In box.
2. For use with Stackable Snap-Ins only.
3. Accepts hose clamps or 1/2'' banding to attach directly to round members.
4. The TrapBox attaches to angle adapters, standoffs, towers, etc., with 3/8'' hardware.
5. Three 3/4'' holes. Maximum load is six 1-5/8'' cables.
Installation
1. Fasten hanger to stand-off with the nut, bolt and lockwasher supplied.
2. Mount the stand-off to the round tower member with the adjustable strap supplie
Product Description:
1. 304 Stainless Steel trapezoid Snap-In box.
2. For use with Stackable Snap-Ins only.
3. Attaches to tower with 3/8" hardware or round member adapters.
4. The TrapBox attaches to angle adapters, standoffs, towers, etc.
5. Allows you to mount up to 3 snap-in hanger (more with stackable snap-ins).
6. Provides three 3/4" diameter holes for the attachment of Snap-In Hangers and as an added bonus.
Feature:
| Application: | Coax cable support | Size: | 3/4" holes |
| Features: | Three run cluster bracket | Material: | 304 stainless steel |
| Mount to: | Round member, angle member cable ladders, and channel sections | Include: | according your requirements |
