Fiber optic patch cord Optical cable types of data communication cables

Product Description

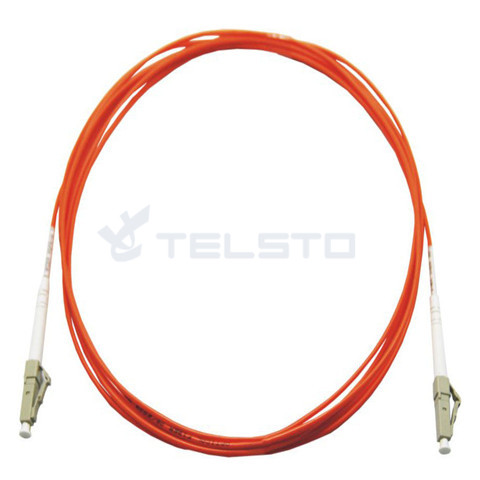

Optical Fiber Patch Cord consists of a single-mode or multi-mode fiber cord and two connectors, one at each end.It is available in both Single mode and multimode versions,come with a zirconia ceramic ferrule with pre-polished UPC or APC.

Telsto Fiber Optic Patch Cords are comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. Refer to the diagram above for dimensional information. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and a precision moulded polymer housing provides consistent long-term mechanical and optical performance.

Features


1.Ceramic Ferrule

2.High return loss

3. Low insertion loss

4.Good repeatability and and exchangeability

5. Excellent Polished and 100% tested

Applications


1.Local Area network (LAN)

2.Data communication network

3.Telecommunication optical transmission network

4.Optical access network (OAN)

5.Active device termination

6.Fiber optics data transmission (FODT)

7.Test Equipment

8.CATV

Technical Specification


Fiber optic patch cord FC SC ST
LC MU MTRJ E2000
Item Mode PC UPC APC PC UPC APC
Insertion loss SM ≤0.20dB ≤0.20dB ≤0.20dB ≤0.20dB ≤0.20dB ≤0.20dB
MM ≤0.20dB ≤0.20dB - ≤0.20dB ≤0.20dB -
Return loss SM ≥45dB ≥55dB ≥65dB ≥45dB ≥50dB ≥60dB
MM ≥35dB ≥35dB - ≥35dB ≥35dB -
Exchangedbility ≤0.20dB ≤0.20dB
Operating Temperature -40~+75℃ -40~+75℃
Storage Temperature -40~+85℃ -40~+85℃

Quick Details


Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number:Fiber Optic Patch Cord
