European standard cable socks & wire mesh grips

Product Description

Telsto Hoisting grips provide an effective method for hoisting coax and elliptical waveguide into position and can be utilized to provide additional support once in place. Hoisting grips for coaxial cables include a self-locking clip and sealing tape to provide additional support both during and after installation.

*Application: Coaxial cable and waveguide support
*Size: Versions for coaxial and elliptical waveguide
*Design: Mesh grip with single eye support
*Feature: Lace-up installation at any point on coaxial
*Material: Stainless Steel


European standard cable socks & wire mesh grips

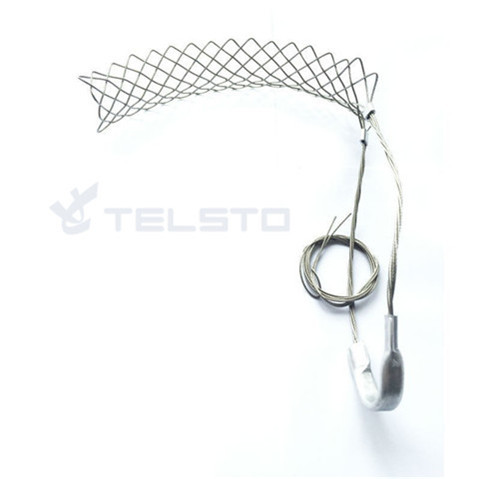

Cable socks
·These Grip offer a flexible eye and double weave stainless steel wire construction for regual loadpulls.
· Made of stainless steel 304 wire
· All sizes optimized for a cable range
· All sizes tested according to strict standard
Product line Cable grips
Product type Cable socks
For cable type Coaxial,elliptical waveguide hybrid (FiberFeed,Hybriflex) or fiber cable
Size 1/4, 3/8, 1/2, 5/8, 7/8, 1-1/4, 1-5/8, 2-1/4, 3, 4, 5 in or any other sizes
Number of cables 1 cable
Material Stainless steel 304 wire



Quick Details


Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Model Number:cable socks
Product Line:Cable grips
Product Type:Cable socks
Size:1/4" in-5" in
Material:stainless steel
Min Diameter:1/4" in -5" in
Eye:single
Eye Length:6" in-20" in
Mesh Length:6" in-55" in
Safe Loading:500-7680 lbs

Part number Description
TEL-14 Cable socks for 1/4’’ cable,min diameter 6mm
TEL-38 Cable socks for 3/8’’ cable,min diameter 8.38mm
TEL-12 Cable socks for 1/2’’ cable,min diameter 12.7mm
TEL-58 Cable socks for 5/8’’ cable,min diameter 19mm
TEL-78 Cable socks for 7/8’’ cable,min diameter 25.4mm
TEL-114 Cable socks for 1-1/4’’ cable,min diameter 31.75mm
TEL-158 Cable socks for 1-5/8’’ cable,min diameter 45mm
TEL-214 Cable socks for 2-1/4’’ cable,min diameter 50mm
TEL-3 Cable socks for 3 in cable
TEL-4 Cable socks for 4 in cable
TEL-5 Cable socks for 5 in cable
