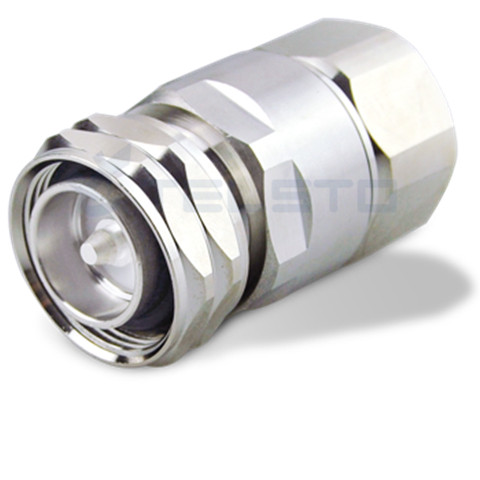

Rf coaxial connectors Din 7/16 male to 7/8” coaxial cable

Product Description

Model: TEL-DINM.78-RFC

Description:

DIN 7/16 Male connector for 7/8’’ flexible RF cable

Material and Plating
Center contact Brass / Silver Plating
Insulator PTFE
Body & Outer Conductor Brass / alloy plated with tri-alloy
Gasket Silicon Rubber
Electrical Characteristics
Characteristics Impedance 50 Ohm
Frequency Range DC~3 GHz
Insulation Resistance ≥5000MΩ
Dielectric Strength 4000 V rms
Center contact resistance ≤0.4mΩ
Outer contact resistance ≤1.0 mΩ
Insertion Loss ≤0.05dB@3GHz
VSWR ≤1.06@-3.0GHz
Temperature range -40~85℃
PIM  dBc(2×20W) ≤-155 dBc(2×20W)
Waterproof IP67

4.3-10 Connector

4.3-10 connector system is designed to meet the rising performance needs of mobile network equipment e.g. to connect the RRU to the antenna. The small size and low weight of these connectors do justice to the miniaturization of mobile radio network components. Despite their size, the connectors guarantee excellent return loss and passive inter-modulation performance (PIM) levels.

4.1-9.5 Connector

4.1-9.5 connector axial connectors are robust, weatherproof screw-on connectors with smaller dimensions than 7-16.

7/16 DIN Connector (L29)

 7/16 DIN coaxial connectors – high-quality coaxial connectors with low attenuation and inter-modulation for frequencies up to 8.3 GHz. Transmission of medium to high power with radio transmitters and low PIM transmission of received signals such as in mobile phone base stations are typical applications due to their high mechanical stability and best possible weather resistance.

N Connector

N connectors are available with 50 Ω and 75 Ω impedance. The frequency range extends to 11 GHz, depending on the connector and cable type. The screw-type coupling mechanism provides a sturdy and reliable connection.

BNC Connector

BNC oaxial connectors, with a two stud bayonet coupling mechanism for easy, fast and reliable connections, are mainly applied in data systems and telecom applications. Connector styles are available for flexible, conformable and semi-rigid cable types.

Quick Details


Place of Origin:China (Mainland)
Brand Name:Telsto
Type:RF Connector
Application:RF
Gender:Male
Impedance:50 Ohm
Voltage Proof:2.5KV/50Hz
Material:Brass
Durability:≥500 times
Temperature Range:-40℃ ~+85℃
Watertightness:IP67
Rosh-compliance:Full ROHS compliance
Salt-fog test:96h
Matching Cable:According to your requirements

, , ,
