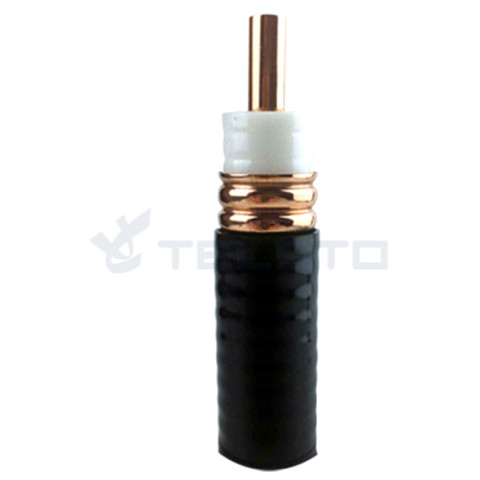

Brand Factory 50 ohms RF 50158 cable best selling coaxial cable for communication
| construction | |||
| inner conductor | material | hellcally corrugated conpper | |
| dia. | 17.30±0.10 mm | ||
| insulation | material | physically foamed PE | |
| dia. | 43.50±0.60 mm | ||
| outer conductor | material | ring corrugated copper | |
| diameter | 46.50±0.30 mm | ||
| jacket | material | PE or fire retardant PE | |
| diameter | 49.50±0.40 mm | ||
| mechanical properties | |||
| bending radius | single repeated moving | 300 mm 510 mm - | |
| pulling strength | 3630 N | ||
| crush resistance | 2.1 kg/mm | ||
| recommended temperature | PE jacket | store | -70±85°C |
| installation | -40±60°C | ||
| operation | -55±85°C | ||
| fire retardant PE jacket | store | -30±80°C | |
| installation | -25±60°C | ||
| operation | -30±80°C | ||
| electrical properties | |||
| impedance | 50±2 Ω | ||
| capacitance | 76 pF/m | ||
| inductance | 0.190 uH/m | ||
| propagation velocity | 88 % | ||
| DC breakdown voltage | 11 kV | ||
| insulation resistance | >5000 MQ.km | ||
| peak power | 315 kW | ||
| screening attenuation | >120 dB | ||
| cut-off frequency | 2.75 GHz | ||
| attenuation and average power | |||
| frequency,MHz | power rate@20°C,kW | nom.attenuation@20°C,dB/100m | |
| 10 | 54.3 | 0.202 | |
| 100 | 16.4 | 0.671 | |
| 450 | 7.18 | 1.53 | |
| 690 | 5.95 | 1.95 | |
| 800 | 5.15 | 2.13 | |
| 900 | 4.81 | 2.29 | |
| 1000 | 4.52 | 2.43 | |
| 1800 | 3.17 | 3.47 | |
| 2000 | 2.96 | 3.71 | |
| 2200 | 2.82 | 3.94 | |
| 2400 | 2.66 | 4.16 | |
| 2500 | 2.58 | 4.27 | |
| 2600 | 2.49 | 4.38 | |
| 2700 | 2.40 | 4.48 | |
| maximum attenuation value may be 105% of the nominal attenuaiton value. | |||
| vswr | |||
| 820-960MHz | ≤1.15 | ||
| 1700-2200MHz | ≤1.15 | ||
| 2300-2400MHz | ≤1.15 | ||
| standards | |||
| 2011/65/EU | compliant | ||
| IEC61196.1-2005 | compliant | ||
Quick Details
Place of Origin: shanghai, China (Mainland)
Brand Name: Hansen
Model Number: RF 50158
Type: Coaxial
Number of Conductors: 1
inner conductor: hellcally corrugated conpper
insulation: physically foamed PE
outer conductor: ring corrugated copper
jacket: PE or fire retardant PE
impendance: 50±2 Ω
capacitance: 76 pF/m
propagation velocity: 88 %
insulation resistance: >5000 MQ.km
peak power: 315 kW
screening effectiveness: >120 dB
