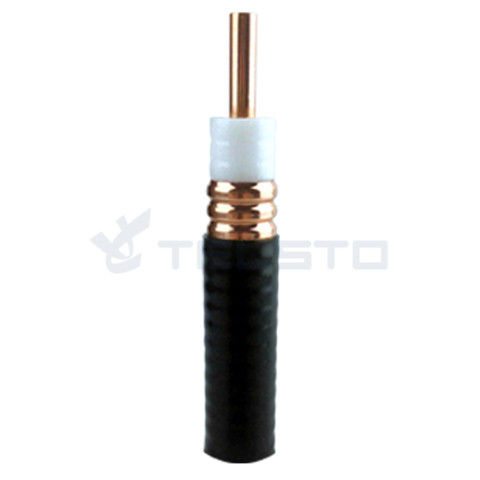

High Quality Antenna Coaxial Feeder Cable 7/8''
| construction | |||
| inner conductor | material | smooth conpper tube | |
| dia. | 8.80±0.10 mm | ||
| insulation | material | physically foamed PE | |
| dia. | 22.20±0.40 mm | ||
| outer conductor | material | ring corrugated copper | |
| diameter | 24.90±0.30 mm | ||
| jacket | material | PE or fire retardant PE | |
| diameter | 27.30±0.20 mm | ||
| mechanical properties | |||
| bending radius | single repeated moving | 120 mm 250 mm 500 mm | |
| pulling strength | 1470 N | ||
| crush resistance | 1.4 kg/mm | ||
| recommended temperature | PE jacket | store | -70±85°C |
| installation | -40±60°C | ||
| operation | -55±85°C | ||
| fire retardant PE jacket | store | -30±80°C | |
| installation | -25±60°C | ||
| operation | -30±80°C | ||
| electrical properties | |||
| impedance | 50±2 Ω | ||
| capacitance | 75 pF/m | ||
| inductance | 0.187 uH/m | ||
| propagation velocity | 88 % | ||
| DC breakdown voltage | 6.0 kV | ||
| insulation resistance | >5000 MQ.km | ||
| peak power | 91 kW | ||
| screening attenuation | >120 dB | ||
| cut-off frequency | 5.5 GHz | ||
| attenuation and average power | |||
| frequency,MHz | power rate@20°C,kW | nom.attenuation@20°C,dB/100m | |
| 10 | 24.6 | 0.366 | |
| 100 | 7.56 | 1.19 | |
| 450 | 3.41 | 2.65 | |
| 690 | 2.85 | 3.35 | |
| 800 | 2.48 | 3.63 | |
| 900 | 2.33 | 3.88 | |
| 1000 | 2.19 | 4.12 | |
| 1800 | 1.57 | 5.75 | |
| 2000 | 1.48 | 6.11 | |
| 2200 | 1.41 | 6.45 | |
| 2400 | 1.34 | 6.79 | |
| 2500 | 1.30 | 6.95 | |
| 2600 | 1.27 | 7.12 | |
| 2700 | 1.25 | 7.28 | |
| 3000 | 1.16 | 7.76 | |
| maximum attenuation value may be 105% of the nominal attenuaiton value. | |||
| vswr | |||
| 820-960MHz | ≤1.15 | ||
| 1700-2200MHz | ≤1.15 | ||
| 2300-2400MHz | ≤1.15 | ||
| standards | |||
| 2011/65/EU | compliant | ||
| IEC61196.1-2005 | compliant | ||
Quick Details
Place of Origin:shanghai, China (Mainland)
Brand Name: Hansen
Model Number:feeder cable
Type:Coaxial
Number of Conductors:1
inner conductor:smooth conpper tube
insulation:physically foamed PE
outer conductor:ring corrugated copper
jacket:PE or fire retardant PE
impendance:50±2 Ω
capacitance:75 pF/m
propagation velocity:88 %
insulation resistance:>5000 MQ.km
peak power:91 kW
Product name:2018 New High Quality Antenna C
