Description

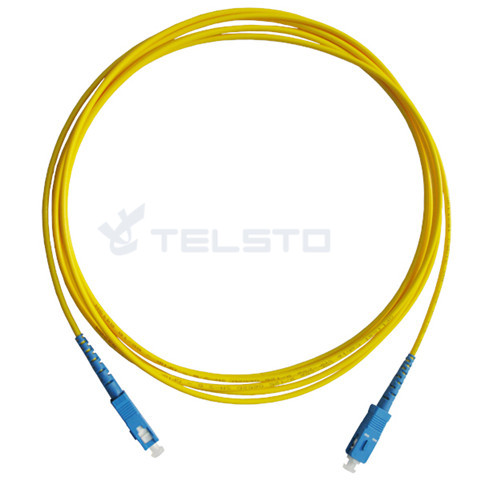

Optical Fiber Patch Cord consists of a single-mode or multi-mode fiber cord and two connectors, one at each end.It is available in both Single mode and multimode versions,come with a zirconia ceramic ferrule with pre-polished UPC or APC.
Telsto Fiber Optic Patch Cords are comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. Refer to the diagram above for dimensional information. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and a precision moulded polymer housing provides consistent long-term mechanical and optical performance.
The SC connectors used for our patch cord sand are fully compatible with existing SC hardware. Two simplex connectors can be configured into a duplex format by adding a duplex clip.
In addition to basic testing, some mechanical and environmental tests per IEC or Telcordia are also performed periodically to guarantee the best quality. For standard patch cords,sampling check is performed on ferrule geometry to ensure high percentage of polished connectors meeting GR-326 requirements.
For premium grade, ferrule geometry is tested on all patch cords to meet these GR-326 requirements.
Other than standard single mode and multimode fibers, G655, OM2, and OM3 fibers are also available upon request.
Flame retardant grade cable sheathing options are offered. Riser rated cable will be provided as standard. LSZH and Plenum can be provided upon request.
Features
1. Push-pull latching mechanism
2. Non-optical disconnect performance
3. High quality zirconia ferrules
4. Materials meet RoHS requirements
5. Riser, Plenum, and LSZH cables available.
Applications
1. Telecommunication
2. Computer networks
3. CATV networks
4. Active device termination
5. Instrumentation
Specifications
Fiber type | Single Mode | Multi-Mode |
Insertion oss(dB) | ≤0.3 | ≤0.35 |
Temperature(℃) | -40~+80 | -40~+80 |
Repeatability(dB) | ≤0.1 | ≤0.1 |
Interchangeability(dB) | ≤0.2 | ≤0.2 |
Return loss(dB) | PC≥45,UPC≥50, APC≥65 | ≥40 |
Cable diameter(mm) | 3.0mm ,2.0mm,0.9mm | |
Ferrule material | Zirconia Ceramic | |
Quick Details
Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number:Fiber Optic Patch Cord
Fiber Type:SM, MM
OEM:accept
connector:FC SC ST LC
Color:Customized
fiber type:SM , MM
endface:PC UPC APC MPO MTP
Application:FTTH FTTB FTTX Network
HS code:8544700000
package:plastic bag and carton box
