Product Description
Telsto RF Connector has an operational frequency range of DC-3 GHz, offers excellent VSWR performance and Low Passive Intermodulation. This makes it ideally suited for use in cellular base stations, distributed antenna systems (DAS) and small cell applications.
Adapter
Model: TEL-NM.DINF-AT
Description:

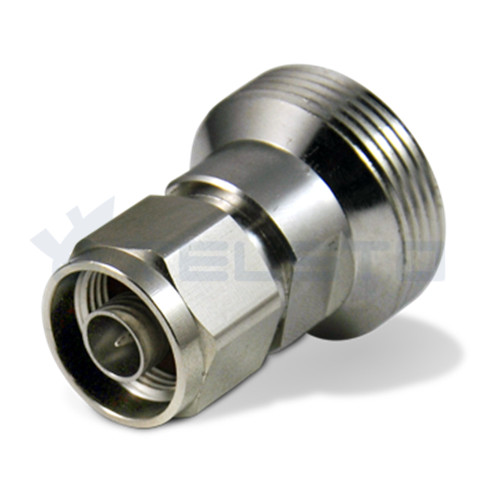

N Male to DIN 7/16 Female Adapter
| Material and Plating | |
| Center contact | Brass / Silver Plating |
| Insulator | PTFE |
| Body & Outer Conductor | Brass / alloy plated with tri-alloy |
| Gasket | Silicon Rubber |
| Electrical Characteristics | |
| Characteristics Impedance | 50 Ohm |
| Frequency Range | DC~3 GHz |
| Insulation Resistance | ≥5000MΩ |
| Dielectric Strength | ≥2500 V rms |
| Center contact resistance | ≤1.0 mΩ |
| Outer contact resistance | ≤0.25 mΩ |
| Insertion Loss | ≤0.1dB@3GHz |
| VSWR | ≤[email protected]GHz |
| Temperature range | -40~85℃ |
| PIM dBc(2×20W) | ≤-157 dBc(2×20W) |
| Waterproof | IP67 |
4.3-10 types for your choices:
| Product | Description | Part No. |
| RF Adapter | 4.3-10 Female to Din Female Adapter | TEL-4310F.DINF-AT |
| 4.3-10 Female to Din Male Adapter | TEL-4310F.DINM-AT | |
| 4.3-10 Male to Din Female Adapter | TEL-4310M.DINF-AT | |
| 4.3-10 Male to Din Male Adapter | TEL-4310M.DINM-AT |
