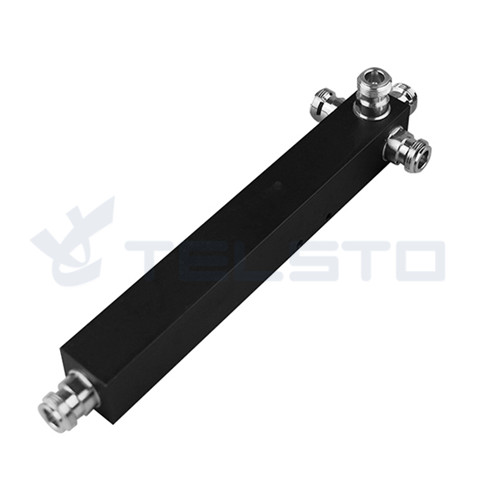

RF 698-2700MHz N Female connector 4 way Power Splitter
Multiple-Band Frequency Ranges
300 Watt Power Rating
High Reliability
Low Cost Design for ease of mounting
N-Female Connector
Specfications:
| General Specification | TEL-PS-2 | TEL-PS-3 | TEL-PS-4 |
| Frequency Range (MHz) | 698-2700 | ||
| Way No(dB)* | 2 | 3 | 4 |
| Divided Loss(dB) | 3 | 4.8 | 6 |
| VSWR | ≤1.20 | ≤1.25 | ≤1.30 |
| Insertion Loss(dB) | ≤0.20 | ≤0.30 | ≤0.40 |
| PIM3(dBc) | ≤-150(@+43dBm×2) | ||
| Impedance (Ω) | 50 | ||
| Power Rating(W) | 300 | ||
| Power peak (W) | 1000 | ||
| Connector | N-F | ||
| Temperature Range(℃) | -20~+70 | ||
Quick Details
Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number:TEL-PS-4
Frequency Range:698 -2700MHz
VSWR:<1.25
PIM (IM3):<-155dBc @+43dBm*2
Connector Type:N Female
Power Rating:300W
Applied Environment:Indoor / Outdoor
Protection class:IP65
