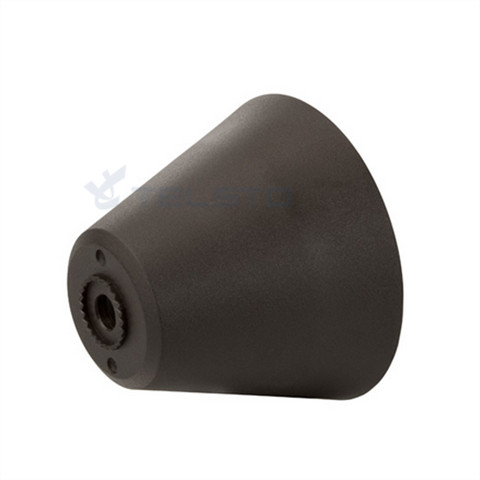

Leaky Feeder Hanger Cable Clamp

Product Description


Leaky Feeder Hanger Cable Clamp

The feeder clamp is a fixed device used for the communication base stations, repeaters, indoor coverage systems, wireless paging and microwave communication systems.

And Leaky Feeder Cable Hanger Cable Clamp is a Self-locking hanger, used to fix power cable and fiber cable at the same time.

Leaky Feeder Cable Hanger Cable Clamp Features

The clamp is designed to secure 1 leaky cable.

Good impact-resistance and tear-resistance.

Operating temperature:-40℃+80℃

Insert 1 cable hanger every 1m.

Flammability Test Method:UL94

Leaky Feeder Hanger Cable Clamp Application

Apply to installing radiating cables in galleries and tunnels with or without spacers. The installation is very simple and quick.

Application Scope: 1/4" S (4-7mm) clamp, 1/4" (7-9mm) clamp, 3/8" (9-11mm) clamp, 1/2" S (12-14mm) clamp, 1/2" (15-17mm) clamp, 5/8" (21-23mm) clamp, 7/8" (27-29mm) clamp, 1-1/4" (38-40mm) clamp, 1-5/8" (49-51mm) clamp

Technical Data


Product Name
Leaky Feeder Cable Hanger Cable Clamp
Item No.
TEL-LC158
Type
Round base
Clamp Class
Self-Locking Hanger
Plastic Material
Polypropylene (PP)/PA66
Metal Material
Self-Locking Hanger
Clamp Stack
Single Fold Stack
Match Cable
7/8",1-1/4",1-5/8" Leaky Cable

Package


MOQ: Flexible, OEM orders acceptable.

Packing details: Plastic/carton box, then seaworthy plywood case, or as per request.

Shipping method: By express, by air or by sea or as request.

Shipping port: Shanghai, Qingdao, Tianjin or as per request.

Shipping time: according to order quantity.

Quick Details


Place of Origin: Shanghai,China (Mainland)
Brand Name : Telsto
Model Number:leaky type
Product Name: Leaky Feeder Hanger Cable Clamp
Model: Leaky Feeder Cable Hanger Type
Plastic Material: Polypropylene (PP)/PA66
Metal Material: Iron or 304 Stainless Steel
Clamp Stack: Single Fold Stack
Match Cable: 7/8",1-1/4",1-5/8" Leaky Cable

, , ,
