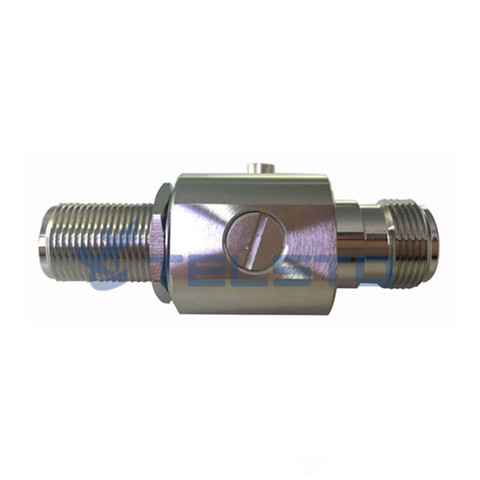

N female to female coaxial lightning arrestor

DETAILS


N connector lightning arrestor for antenna

-N Female to N Male connectors

- Protect your antenna and device from dangerous electrical surges.

Our N connector lightning arrestor for antenna provide excellent VSWR and superior RF performance characteristic for equipment operating ,installed between antanna and feeder cable ,it protects not only the equipment, but also the cable itself.This type of rf surge protection provide are used in basestation ,at the heart of this coaxial lightning arrestor are specially designed gas discharge tubes.

Electrical Specifications
Frequency Range: DC - 4GHz
Input Impedance: 50Ω
VSWR: <1.25:1
Insertion Loss: <0.5dB
Dielectric Resistance:20KA(8/20 μ s)

Mechanical/Environmental
Construction: Try-alloy plated

Connector: N feMale to N Female
Temperature: -40 to +85ºC

Key Specifications
Impedance50 Ohm
Connector In SeriesN
Connector In GenderFemale
Connector Out SeriesN
Connector Out GenderFemale
Minimum FrequencyDC
Maximum Frequency3 GHz
Maximum Input Power200 Watts

In-Line Surge Protector 50 Ohm N Female to N Female Surge Protector

RF surge protector (also known as lightning arrester) is manufactured to precise radio frequency component standards for protection from electrical surges. This RF surge protector component in a coaxial in-line design is manufactured with N connectors and they are 50 Ohm. Our in-line coaxial N surge / lightning protector / arrester uses female connectors.


Surge arrestors are designed to provide excellent lightning protection and outstanding RF performances. Telsto Gas tube lightening surge arresters can be integrated directly into the cabling system and provide reliable surge protection in case of over voltages. Our surge arrestors provide excellent lightning protection and outstanding RF performance. All designs are low return loss, low insertion loss and low intermodulation.

*High quality materials
*Excellent RF performance
*Total weatherproof
*Available with type N or 7/16 DIN type
*Waterproof
*Environment resistance ensures long life and consistent performance

Product DescriptionPart No.

Surge Arrester

DIN 7/16 Male to Female Gas TubeTEL-SA-DINM.F
N Female to N FemaleTEL-SA-NF.F
N Male to N FemaleTEL-SA-NM.F
SMA Female to FemaleTEL-SA-SMAF.F
SMA Female to MaleTEL-SA-SMAF.M
SMA Male to MaleTEL-SA-SMAM.M
,
