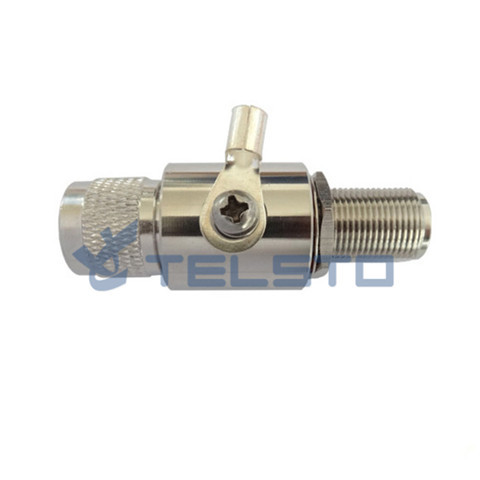

N male to N female RF lightning protection for DC-3GHz


N male to N female RF lightning protection for DC-3GHz

-N male to N female bulkhead RF lightning protection

-Protect your antenna and device from dangerous electrical surges

Telsto series of DC pass RF lightning and surge protection products with an frequency operating band from DC to 3GHz. Telsto Development Co., Limited is one of the leading gas discharge tube lightning arrester n male to n female dc-3ghz manufacturers and also a famous such supplier, welcome to visit our website.

The series is the perfect RF equipment protection solution for most application requiring DC voltage and current to power tower top mounted electronics. The product family is suitable for outdoor as well as indoor installations and its white bronze plated housing ensures durability and long life.

Electrical Specifications
Frequency Range: DC - 3GHz
Input Impedance: 50Ω
VSWR: <1.18:1
Insertion Loss: <0.5dB
Dielectric Resistance:20KA(8/20 μ s)

Construction: Ni plated
Connector: N Male to N Female Bulkhead
Temperature: -40 to +85ºC

Surge arrestors are designed to provide excellent lightning protection and outstanding RF performances. Telsto Gas tube lightening surge arresters can be integrated directly into the cabling system and provide reliable surge protection in case of over voltages. Our surge arrestors provide excellent lightning protection and outstanding RF performance. All designs are low return loss, low insertion loss and low intermodulation.

*High quality materials
*Excellent RF performance
*Total weatherproof
*Available with type N or 7/16 DIN type
*Environment resistance ensures long life and consistent performance

Product DescriptionPart No.

Surge Arrester

DIN 7/16 Male to Female Gas TubeTEL-SA-DINM.F
N Female to N FemaleTEL-SA-NF.F
N Male to N FemaleTEL-SA-NM.F
SMA Female to FemaleTEL-SA-SMAF.F
SMA Female to MaleTEL-SA-SMAF.M
