Telsto entry boots are designed to be fitted onto entry panels which are installed on wall/roof. Entry boots must be fitted with a cushion to hold the coax in place. Entry boot can be used on panels to create a neat and clean installation.
The cable entry, which is used for the waterproof when feeder enters the machine room, is composed of entrance wall / roof feed through plate and cable entry boot. It has good airproof and easy installation features.

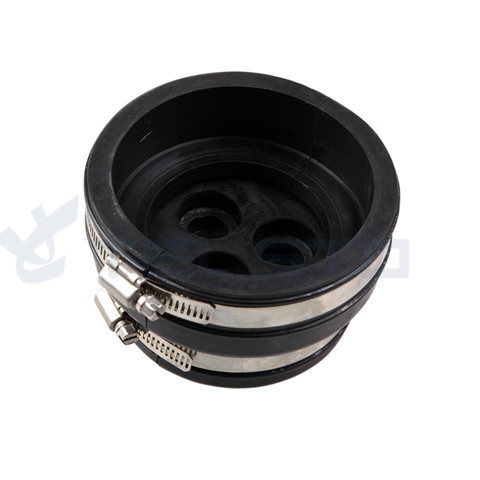

Cable Entry Boot( Throat Hoop Type)
Combined with 1/2", 7/8" diameter.
Material: Aluminum alloy or stainless steel. Customers can choose the suitable material upon the requirements.
4 port cable entry boot (12 hole)
6 port cable entry boot (18 hole)
8 port cable entry boot (24 hole)
9 port cable entry boot (27 hole)
12 port cable entry boot (36 hole)

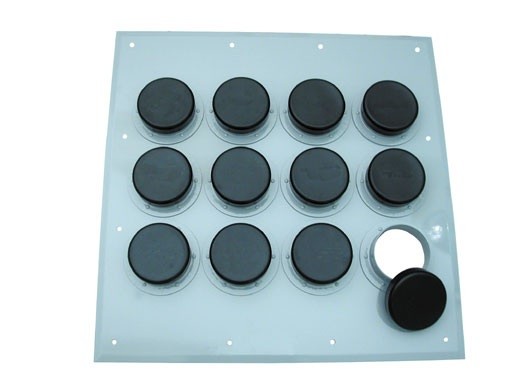

Cable Entry ( Throat Hoop Type) Without Tightening Boot
4 ports cable entry
6 ports cable entry
8 ports cable entry
9 ports cable entry
12 ports cable entry

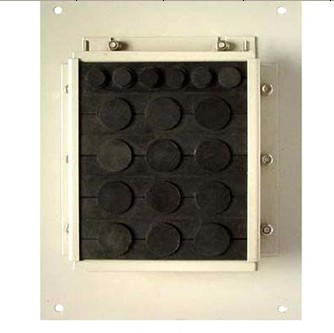

Wall Entry (Adjustable type)
Material: Aluminum alloy.
7/8" *12 hole + 1/2"*6 holes
