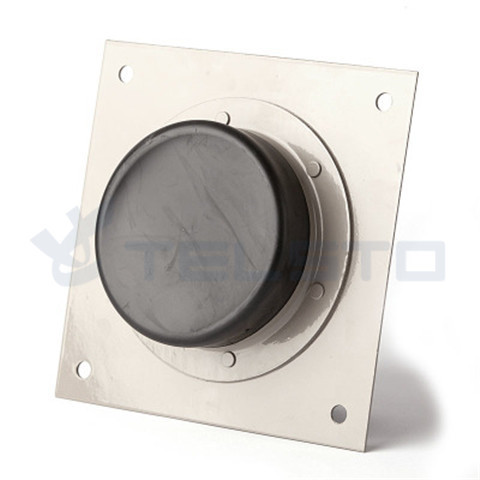

High quality and hot selling communication auxiliary material Cable Entry plate:
Application
Apply to all sorts of cable into the engine room, thus play a role in sealing, apply to mobile base station, exchange, microwave station etc. kinds of engine room.
Material:
1, metal parts: high quality aluminum alloy plate or stainless steel
2, sealing element: top-quality rubber that high and low temperature resistant non-deformed and anti-aging capability
Feature:
1, adopt -55°C~+60°Ctemperature changing.
2, resistant to corrosion of corrosive gas, air, acid rain.
3, prevent the rain and outside moisture into the engine room through the gap between cable and sealing element or the gap between HLKC and wall. The grade of seal performance can reach IP65.
4, shield electromagnetism disturbing
5, provide all sorts of different types sealing element form a whole sealing part, meet different OD cable through a HLKC into the room
Installation instructions:
a. reserved a suitable hole, the detailed dimension refer to the product specification.
b. fix the seal plate into the reserved hole by anchoring.
c. put waterproof silica gel around the seal plate, the sealing effect will be better.
| Product | Hole Of Ports | Wall Opening | Overall Size | Part No. |
| 1 | 1 | 4'' x 4'' | 5'' x 5'' | TEL-EP-1x1 |
| 2 | 2 | 4'' x 10'' | 9.5''x 15.5'' | TEL-EP-1x2 |
| 3 | 3 | 4'' x 15'' | 9.5'' x 20'' | TEL-EP-1x3 |
| 4 | 4 | 4'' x 20.5'' | 9.5'' x 25.5'' | TEL-EP-1x4 |
| 5 | 4 | 9.5'' x 11'' | 17.5'' x 17.5'' | TEL-EP-2x2 |
| 6 | 6 | 9.5'' x 15'' | 17.5'' x 23'' | TEL-EP-2x3 |
| 7 | 8 | 9.5'' x 20.5'' | 17.5'' x 25.5'' | TEL-EP-2x4 |
| 8 | 9 | 15'' x 15'' | 23'' x 23'' | TEL-EP-3x3 |
| 9 | 12 | 15'' x 20.5'' | 25.5'' x 25.5'' | TEL-EP-3x4 |
| 10 | 12 | 9.5'' x 31.5'' | 17.5'' x 39.5'' | TEL-EP-2x6 |
| 11 | 16 | 20.5'' x 20.5'' | 25.5'' x 25.5'' | TEL-EP-4x4 |
| 12 | 18 | 15'' x 31.5'' | 25.5'' x 39.5'' | TEL-EP-3x6 |
| 13 | 24 | 20.5'' x 31.5'' | 31'' x 39.5'' | TEL-EP-4x6 |
Quick Details
Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Model Number:4/6/9/12 holes
Name:Cable Entry plate
Material:Stainless steel/aluminum alloy plate and rubber seal
Shape:Good looking
Function:Suit for all kinds of cable into the engine room
Level:IP65
Applications:for feeder cables entering
