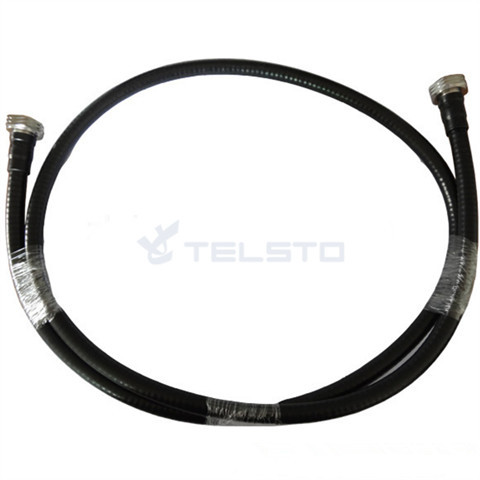

Jumper cable 1/2″ superflex with 7/16 Male DIN Connector

Specification:


1 RF coaxial connector:

1.1 Material and Plating

Inner conductor: brass, plated with silver, Plating thickness: ≥0.003mm

Insulation dielectric: PTFE

Outer conductor: brass, plated with ternary alloy, Plating thickness≥0.002mm

1.2 Electrical & Mechanic Feature

Characteristics impedance: 50Ω

Frequency range: DC-3GHz

Dielectric strength: ≥2500V

Contact resistance: inner conductor≤1.0mΩ, Outer conductor≤0.4mΩ

Insulator resistance: ≥5000MΩ (500V DC)

VSWR: ≤1.15 (DC-3GHz)

PIM: ≤-155dBc@2x43dBm

Connector durability: ≥500 cycles

2 RF coaxial cable: 1/2” Super Flexible RF Cable

2.1 Material

Inner conductor: aluminum wire covered with copper (φ3.60mm)

Insulation dielectric: polyethylene foam (φ8.90mm)

Outer conductor: corrugated copper tube (φ12.20mm)

Cable jacket: PE (φ13.60mm)

2.2 Feature

Characteristics impedance: 50Ω

Standard capacitor: 80pF/m

Transmission rate: 83%

Min. single bending radius: 50mm

Tensile strength: 700N

Insulation resistance: ≥5000MΩ

Shielding attenuation: ≥120dB

VSWR: ≤1.15 (0.01-3GHz)

3 Jumper cable

3.1 Cable Component Size:

Total length of cable assemblies:

1000mm±10

2000mm±20

3000mm±25

5000mm±40

3.2 Electrical feature

Frequency Band: 800-2700MHz

Characteristics Impedance: 50Ω±2

Operating Voltage: 1500V

VSWR: ≤1.11 (0.8-2.2GHz), ≤1.18 (2.2-2.7GHz)

Insulation voltage: ≥2500V

Insulation resistance: ≥5000MΩ (500V DC)

PIM3: ≤-150dBc@2x20W

Insertion Loss:

Frequency

1m

2m

3m

5m

890-960MHz

≤0.15dB

≤0.26dB

≤0.36dB

≤0.54dB

1710-1880MHz

≤0.20dB

≤0.36dB

≤0.52dB

≤0.80dB

1920-2200MHz

≤0.26dB

≤0.42dB

≤0.58dB

≤0.92dB

2500-2690MHz

≤0.30dB

≤0.50dB

≤0.70dB

≤1.02dB

5800-5900MHz

≤0.32dB

≤0.64dB

≤0.96dB

≤1.6dB

Mechanical Shock Test Method: MIL-STD-202, Method 213, Test Condition I

Moisture Resistance Test Method: MIL-STD-202F, Method 106F

Thermal Shock Test Method: MIL-STD-202F, Method 107G, Test Condition A-1

3.3. Environment feature

Waterproof: IP68

Operation temperature range: -40°C to +85°C

Storage temperature range: -70°C to +85°C

Quick Details


Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Type:Coaxial
Number of Conductors:1
Frequency:DC-3GHz
Dielectric strength:≥2500V
VSWR:≤1.15
PIM:≤-155dBc@2x43dBm
Connector durability:≥500 cycles
Insulation voltage:≥2500V
Tensile strength:700N
Min. single bending radius:50mm
Transmission rate:83%

,
