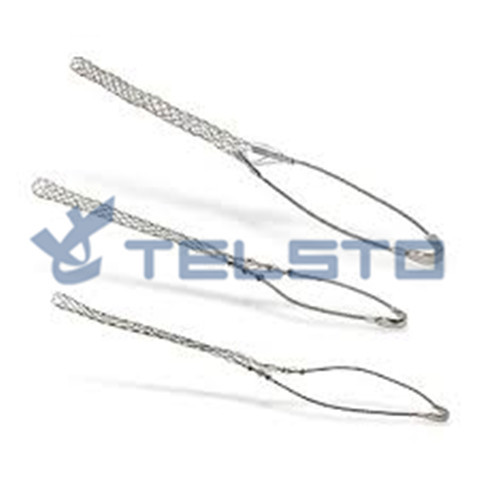

Cable support grip kit
The closed weave ,double eyes support grips control for inside the wind turbine.
Rounded copper ferrulesand reduced cable contact for high vibration enviroment.
1.Flag product
2.Specification
| Part number | Dimensions | |||
| eye | Mesh | Nominal Size | Support Load Capacity | |
| TEL-0710 | 4 in | 10 in | 0.50-0.62 in | 530 lb |
| TEL-1016 | 4 in | 10 in | 0.63-0.74 in | 790 lb |
| TEL-1620 | 4 in | 13 in | 0.75-0.99 in | 1020 lb |
| TEL-2025 | 5 in | 14 in | 1.00-1.24 in | 1610 lb |
| TEL-2531 | 5 in | 15 in | 1.25-1.49 in | 1610 lb |
| TEL-3140 | 5 in | 17 in | 1.50-1.74 in | 1610 lb |
| TEL-4050 | 6 in | 19 in | 1.75-1.99 in | 2150 lb |
| TEL-5060 | 6 in | 21 in | 2.00-2.49 in | 3260 lb |
| TEL-6070 | 6 in | 23 in | 2.50-2.99 in | 3260 lb |
| TEL-7090 | 8 in | 25 in | 3.00-3.49 in | 4900 lb |
| TEL-90110 | 8 in | 27 in | 3.50-3.99 in | 4900 lb |
3.Details
Quick Details
Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Type:closed
weave:double weave
Material:stainless steel
Eye:double
Size range:3.00"-3.49" inch
Eye length:8 inch
Mesh length:25 inch
Safe loading:4900 lbs
