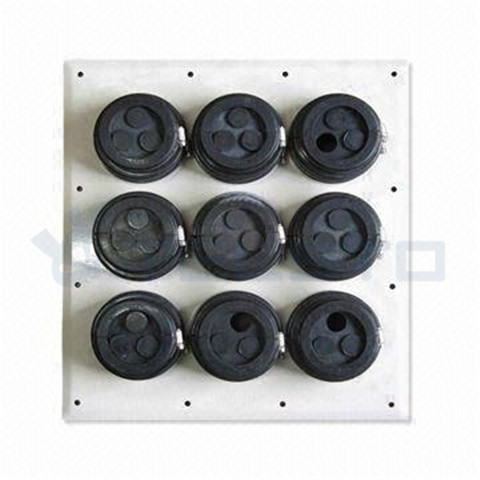

Combined cable wall-entry frame with cushion

Product Description


Telsto entry boots are designed to be fitted onto entry panels which are installed on wall/roof. Entry boots must be fitted with a cushion to hold the coax in place. Entry boot can be used on panels to create a neat and clean installation.

*Various types
*Total sealing
*Easy installation
*Flexible combinations
*Environment friendly

Apply to all sorts of cable into the engine room, thus play a role in sealing, apply to mobile base station, exchange, microwave station etc. kinds of engine room.

Material:


1, metal parts: high quality aluminum alloy plate or stainless steel

2, sealing element: top-quality rubber that high and low temperature resistant non-deformed and anti-aging capability

Feature:


1, adopt -55°C~+60°Ctemperature changing.

2, resistant to corrosion of corrosive gas, air, acid rain.

3, prevent the rain and outside moisture into the engine room through the gap between cable and sealing element or the gap between HLKC and wall. The grade of seal performance can reach IP65.

4, shield electromagnetism disturbing

5, provide all sorts of different types sealing element form a whole sealing part, meet different OD cable through a HLKC into the room

Name Matching cable Item No. Specification
Selectable Cushion And Boot 1/2" cable TEL-12-1 1/2" x 1
TEL-12-2 1/2" x 2
TEL-12-3 1/2" x 3
TEL-12-4 1/2" x 4
7/8" cable TEL-78-1 7/8" x 1
TEL-78-2 7/8" x 2
TEL-78-3 7/8" x 3
TEL-78-4 7/8" x 4
1-1/4" cable TEL-114-1 1-1/4" x 1
1-5/8" cable TEL-158-1 1-5/8" x 1
2-1/4" cable TEL-214-1 2-1/4" x 1
Ports Array Size
1 x 1 7" x 7"
1 x 2 17.5" x 9.5"
1 x 3 20" x 9.5"
1 x 4 25.5" x 9.5"
2 x 2 17.5" x17.5"
2 x 3 23" x 17.5"
2 x 4 25.5" x 17.5"
3 x 4 25.5" x 25.5"
3 x 6 39.5" x 25.5"
4 x 4 25.5" x 25.5"




Quick Details

Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
color:black
material:aluminum
Product Type:Wall/Roof Feed- Through System
plate size:4''
