Product Description

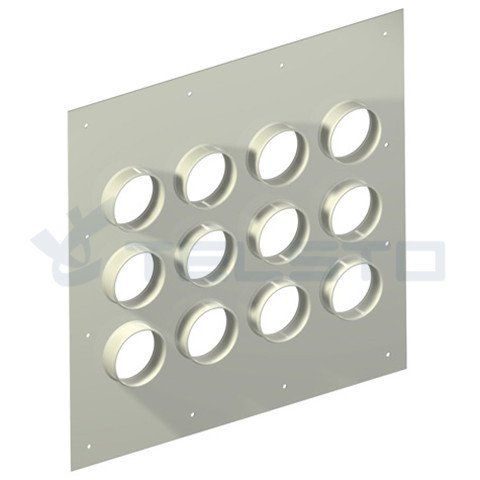

500*650 12 holes adjustable feeder window/ Aluminum feeder window
Apply to all sorts of cable into the engine room , thus play a role in sealing, apply to mobile base station,exchange,microwave station etc. kinds of engine room.
Item Piece parts Material
1 Cable entry plate Aluminum (Gray power coated)
2 Protection caps Rubber Black
3 Expansion bolts Q235 Zinc Plated
Quick Details
Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Material:Aluminum
Size:500*650
Product Name:Aluminum 12 holes cable entry plate
Application:Telecom Cable Installation
Keyword:Cable entry plate
High quality and hot selling communication auxiliary material Cable Entry plate
Application
Apply to all sorts of cable into the engine room, thus play a role in sealing, apply to mobile base station, exchange, microwave station etc. kinds of engine room.
Material:
1, metal parts: high quality aluminum alloy plate or stainless steel
2, sealing element: top-quality rubber that high and low temperature resistant non-deformed and anti-aging capability
Feature:
1, adopt -55°C~+60°Ctemperature changing.
2, resistant to corrosion of corrosive gas, air, acid rain.
3, prevent the rain and outside moisture into the engine room through the gap between cable and sealing element or the gap between HLKC and wall. The grade of seal performance can reach IP65.
4, shield electromagnetism disturbing
5, provide all sorts of different types sealing element form a whole sealing part, meet different OD cable through a HLKC into the room
Installation instructions:
a. reserved a suitable hole, the detailed dimension refer to the product specification.
b. fix the seal plate into the reserved hole by anchoring.
c. put waterproof silica gel around the seal plate, the sealing effect will be better.
