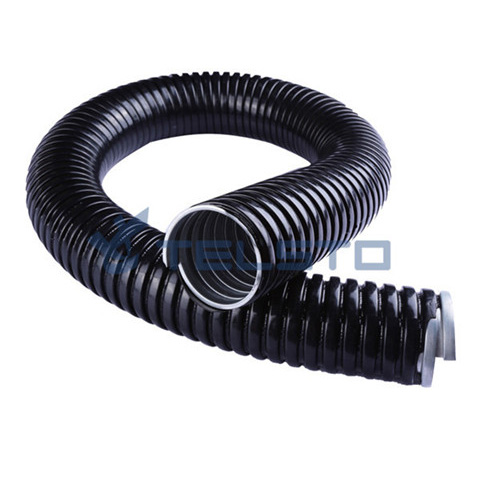

Pvc coated galvanised flexible steel conduit

Quick Details

Place of Origin: shanghai, China (Mainland)
Brand Name: Telsto
Type: Spiral Wrapping
Material: pvc&steel
color: any color

Features:

1, Highly flexible
2, Flame retardant
3, Low smoke density
4, Water resistance
5, High mechanical strength
6, Highly flexible
7, Temperature range: -10 °c ~+80°c

Part No. Size O.D. Natural curve Packing
Black Gray (mm) (inch) mm M
TEL-6B TEL-6G 6 3/16" 9.00±0.25 40 200
TEL-8B TEL-8G 8 1/4" 11.8±0.30 45 100
TEL-10B TEL-10G 10 5/16" 14.5±0.30 55 100
TEL-12B TEL-12G 12 16.5±0.35 60 100
TEL-13B TEL-13G 13 3/8" 17.5±0.35 65 100
TEL-15B TEL-15G 15 20.2±0.35 80 100
TEL-16B TEL-16G 16 1/2" 21.2±0.35 85 100
TEL-19B TEL-19G 19 24.5±0.40 95 50
TEL-20B TEL-20G 20 3/4" 25.5±0.40 100 50
TEL-25B TEL-25G 25 1" 31.7±0.45 120 50
TEL-32B TEL-32G 32 1 1/4" 39.6±0.50 150 25
TEL-38B TEL-38G 38 1 1/2" 46.6±0.60 180 25
TEL-51B TEL-51G 51 2" 59.5±1.00 220 20
TEL-64B TEL-64G 64 2 1/2" 73.5±1.50 310 10
TEL-75B TEL-75G 75 3" 84.5±2.00 350 10
TEL-100B TEL-100G 100 4" 109.0±3.00 410 10
