Product Description

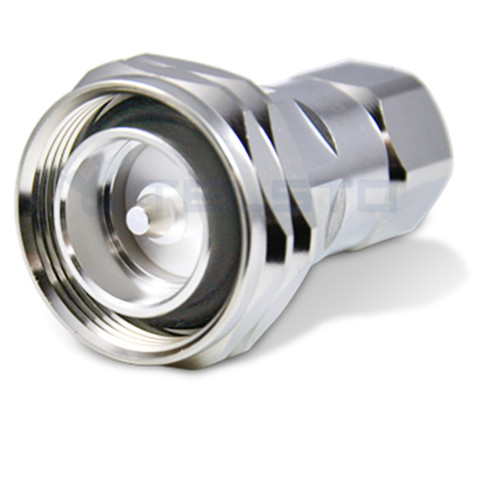

RF Coaxial Connector Din male straight to 1/2'' cable
Model: TEL-DINM.12-RFC
Description:
DIN Male connector for 1/2’’ flexible RF cable
| Material and Plating | |
| Center contact | Brass / Silver Plating |
| Insulator | PTFE |
| Body & Outer Conductor | Brass / alloy plated with tri-alloy |
| Gasket | Silicon Rubber |
| Electrical Characteristics | |
| Characteristics Impedance | 50 Ohm |
| Frequency Range | DC~3 GHz |
| Insulation Resistance | ≥5000MΩ |
| Dielectric Strength | 4000 V rms |
| Center contact resistance | ≤0.4 mΩ |
| Outer contact resistance | ≤1.0 mΩ |
| Insertion Loss | ≤0.08dB@3GHz |
| VSWR | ≤[email protected]GHz |
| Temperature range | -40~85℃ |
| PIM dBc(2×20W) | ≤-155 dBc(2×20W) |
| Waterproof | IP67 |
Packaging & Shipping
The connectors will be packed in one small bag and then put in one box.If you need custom package, we will do as your requirest.
1.We focus on RF Connecter & RF Adapter &Cable Assembly &Antenna.
2.We have a vigorous and creative R&D team with the fullest mastery of the core technology.
We commit ourselves to the development of high performance connector production, and
dedicate ourselves to achieving a leading position in connector innovation and production.
3.Our custom RF cable assemblies are built-in and shipped worldwide
4.RF cable assemblies can be produced with many different connector types and custom lengths
depending on your needs and applications
5.If you require a special RF Connector ,RF Adapter or RF Cable assembly configuration not found here,
you can create your own RF cable assembly configuration by calling our sales department.
Quick Details
Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number:TEL-DINM.12-RFC
Type:Staright
Application:RF
Gender:female/male, Plug/Jack
Orientation:Straight/Right angle
Polarity:Standard
Working Temp:-40'C~+85'C
Mating Cycles:500
