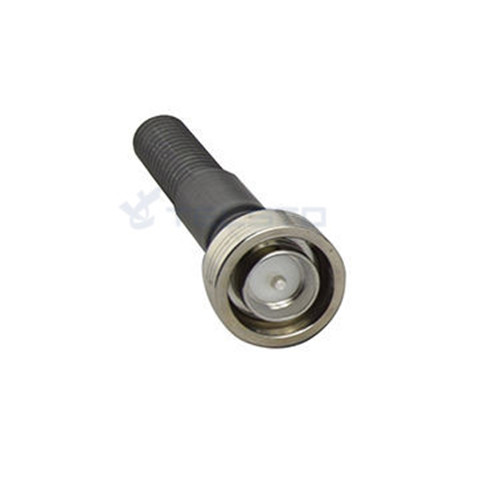

High quality 4.3-10 MINI DIN Connector for 1/2 Superflexible Cable

Product Description


Coaxial connector&adapter are used between equipment and equipment,equipment and compoments,parts and components to achieve the mechanical performance of the various parts of the transmission of electrical signals,and can be used for scientific research,electromagnetic confrontation,aerospace,precision measurement and other microwave fields.

We can provide research and development,design,field mapping,routing and structural optimization to provide the full range of solutions and services based on customers special requirements.

High quality 4.3-10 MINI DIN Connector for 1/2 Superflexible Cable

Features

1. Good shielding performance
2. Low VSWR;Low attenuation
3. Low PIM
4. High Reliability
5. Economic price

Specfications


Electrical Specifications
Impedance
50 ohm
Frequency
DC-3GHz
VSWR
≤1.10 (DC-2.2GHz); ≤1.15 (2.2-3GHz)
Dielectric Strength
≥2500V RMS, at sea level
Dielectric Resistance
≥5000MΩ
Insertion Loss
≤0.12dB (@2200MHz)
Center contact resistance
≤1.0mΩ
Outer contact resistance
≤0.25mΩ
PIM (900MHz, 1800MHz 2×20W)
≤-155dBc
Mechanical Feature
Mating cycles
≥500 times
Termination cable retention
≥500N
Apply with the electric cable
1/2 Superflexible Cable
Environmental parameters
Temperature range
-40℃ to +85℃
Environmental standards
RoHs

Quick Details


Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number:TEL-4310M.12S.RFC
Type:4.3-10 Connector
Application:RF
Gender:Male
Frequency:DC-3GHz
VSWR:≤1.10 (DC-2.2GHz); ≤1.15 (2.2-3GHz)
Insertion Loss:≤0.12dB (@2200MHz)
PIM:≤-155dBc @2*20W
Dielectric Resistance:≥5000MΩ

, , , ,
