Small rf connectors mini din 4.3-10

Small RF connectors mini din 4.3-10

A coaxial RF connector (radio frequency connector) is an electrical connector designed to work at radio frequencies in the multi-megahertz range. RF connectors are typically used with coaxial cables and are designed to maintain the shielding that the coaxial design offers. Better models also minimize the change in transmission line impedance at the connection.

Mechanically, they provide a fastening mechanism (thread, bayonet, braces, push pull) and springs for a low ohmic electric contact while sparing the gold surface, thus allowing above 1000 reconnects and reducing the insertion force. Research activity in the area of radio-frequency (RF) circuit design has surged in the 2000s in direct response to the enormous market demand for inexpensive, high-data-rate wireless transceivers.

What we can do are followings:
BNC connector (Bayonet Neill-Concelman)
F connector
N connector (Neill)
TNC connector (threaded Neill-Concelman)
FME connector
IPX connector
MCX connector
Miniature BNC connector
MMCX connector
Hirose U.FL connector
SMA connector
SMB connector
SMC connector
SMP connector
RP-SMA
RP-TNC
COAXIAL ADPTER
IPEX Connector
H.FL connector
IPEX Receptacle

Quick Details


Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number:TEL-4310M.12-RFC
Type:4.3-10
Application:RF
Gender:Male

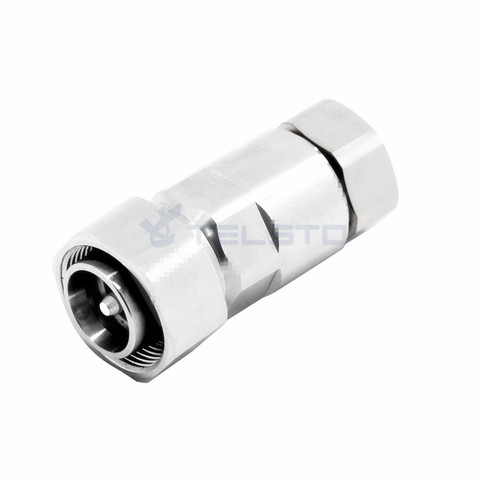

Name:4.3-10 Male connector for 1/2’’ flexible RF cable
OEM:shanghai,China(Mainland)

Material and Plating
Center contact Brass / Silver Plating
Insulator PTFE
Body & Outer Conductor Brass / alloy plated with tri-alloy
Gasket Silicon Rubber
Electrical Characteristics
Characteristics Impedance 50 Ohm
Frequency Range DC~3 GHz
Insulation Resistance ≥5000MΩ
Dielectric Strength ≥2500 V rms
Center contact resistance ≤1.0 mΩ
Outer contact resistance ≤1.0 mΩ
Insertion Loss ≤0.1dB@3GHz
VSWR ≤1.1@-3.0GHz
Temperature range -40~85℃
PIM  dBc(2×20W) ≤-155 dBc(2×20W)
Waterproof IP67
, , , , ,
