Product Description

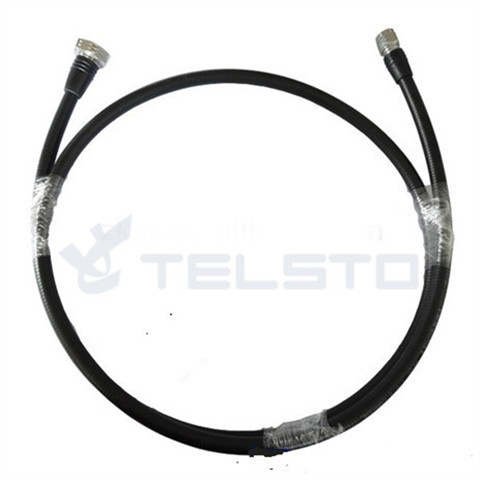

1/2"superflex jumper, 4.3-10 MINI DIN male 2m
| Type name | 4.3-10 mini din male connector | |
| Impedance | 50Ω | |
| Vibration | 100m/S2 (10~500Hz) | |
| Frequency Range | DC-7.5GHz | |
| Insertion Loss | ≤ 0.15dB/6GHz | |
| Withstanding Voltage | 4000V r.m.s at sea level | |
| Working Voltage | 2700Vr.m.s at sea level | |
| Average power | 3Kw max | |
| Insulation Resistance | ≥ 10000 MΩ | |
| Center conductor retention force | ≥ 6N | |
| Durability | ≥ 500(cycles) | |
| Contact resistance: | CenterContact ≤ 0.4mΩ | |
| Outer Contact ≤ 1.5mΩ | ||
| Voltage Standing Wave Ratio: | Straight | ≤ 1.20/6GHz |
| Right angle | ≤ 1.35/6GHz | |
Quick Details
Place of Origin:shnaghai, China (Mainland)
Brand Name:Telsto
Model Number:4.3-10 mini din male connector
Application:Cable assembly
Plating:Nickel/gold
Material:Copper
Insulator:Teflon/Plastic
Impedance:50 ohm
Frequency range:DC-11GHz
Durability:500 cycles
Temp.range:-65°C~+165°C
Type:Cable assembly
