Rf coaxial mini din 4.3/10 male to N female Connector adapter

Product Description

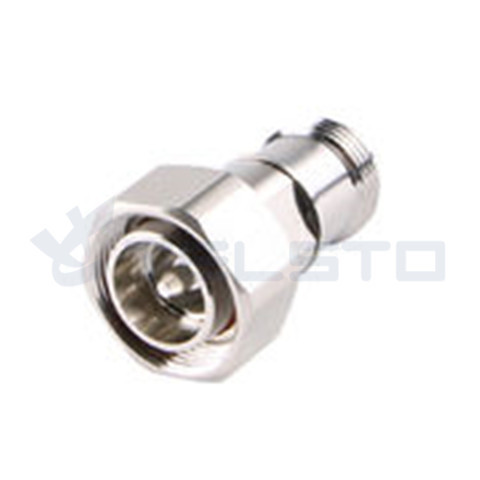

4.3/10 Mini DIN Male to N Female Connector Adaptor
Description 4.3/10 Mini DIN Male to N Female Connector Adaptor
Model No. TEL-4310M.NF-AT
Connector Type Connector A: N female Connector
Connector B: 4.3/10 male Connector
Connector Interface  IEC 60169-16/ IEC61169-54
Electrical
Characteristic Impedance 50ohm
Insertion Loss ≤0.1dB
Typical Frequency Range DC-6GHz
VSWR    ≤1.10@DC-3000MHz
Intermodulation 3rd (PIM3) ≤ -160dBc@2×20W
Durability ≥500 cycles
Material and Plating
Parts Name Material Plating
Body Brass Tri-alloy
Insulator PTFE
Inner Conductor Phosphor Bronze Ag
Coupling Nut Brass Tri-alloy
Gasket  Silicone Rubber
Wash
Environmental
Operating Temperature _45 ℃-85  ℃
Weatherproof Rate IP67
RoHs (2002/95/EC) Compliant  by exemption

Quick Details


Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number:TEL-4310M.NF-AT
Type:4.3-10 to n
Application:RF
Gender:adaptor
Material:Brass and Teflon
Plating:sliver and Tri-alloy
Product name:4.3/10 male to N female Connector
Connector type:4.3/10 and n Connector
VSWR:≤1.10@DC-3000MHz
Impedance:50ohm
Frequency Range:DC-6GHz
Weatherproof Rate:IP67
HS code:85369090

Telsto RF offers a full range of 4.3-10 connectors and adapters, which are engineered for the wireless market and are ideal for applications requiring low passive intermodulation, or PIM.

4.3-10 connectors offer the same, robust design as 7/16 connectors but are smaller and up to 40% lighter, allowing for much more dense, lighter weight applications. These designs are IP-67 compliant to protect against dust and water ingress for outdoor applications, and provide excellent VSWR performance up to 6.0 GHz. Separate electrical and mechanical components yield very stable PIM performance regardless of coupling torque, allowing for easier installation. Silver plated contacts and White Bronze plated bodies offer a high-degree of conductivity, corrosion resistance, and durability.

Features and Benefits


100% PIM tested
50 Ohm nominal impedance
Ideal for applications requiring low PIM and low attenuation
IP-67 compliant

Applications


Distributed Antenna Systems (DAS)
Base Stations
Wireless Infrastructure

4.3/10 Connectors Specifications




Electrical
Impedance 50 Ω
Frequency DC to 6 GHz
VSWR
DC to 4 GHz 0.015 max. (RL ≥ 36 dB)
4 to 6 GHz 0.025 max. (RL ≥ 32 dB)
Center and outer contact resistance ≤ 1.0 mΩ
Insulation resistance 9.2.5. initial ≥ 5 GΩ ≥ 5 GΩ
Proof voltage at sea level 2500 V
PIM
2 × 20 W −166 dBc (0.4 to 4 GHz)
2 × 40 W −160 dBc (0.4 to 4 GHz)
Environmental
Temperature range −55 to +90 °C
Mechanical
Mating cycles >100
Center contact captivation (axial force) 30 N
Coupling torque ≥ 5 Nm
Engagement force typ. 100 N
Separation force typ. 80 N
Coupling mechanism retention force ≥ 450 N
Vibration 100 m/s2, 10 g acceleration, 2 – 200 Hz
Shock 981 m/s2, 100 g acceleration, ½ sin 6 ms
, , , , ,
