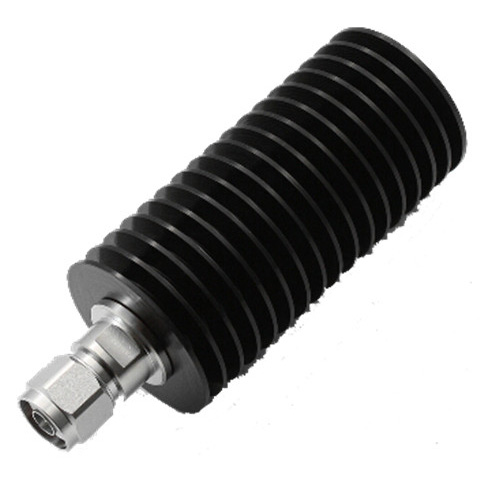

Factory price 100w dummy load,din male dummy load for IBS DAS

Product Description


Termination loads absorb RF & microwave energy and are commonly used as dummy loads of antenna and transmitter. They are also used as match ports in many multiport microwave device such as circulator and directional coupler to make these ports which are not involved in the measurement be terminated in their characteristic impedance in order to ensure an accurate measurement.

Termination loads, also call dummy loads, are the passive 1-port interconnect devices, which provide a resistive power termination to properly terminate the output port of a device or to terminate one end of an RF cable. Telsto Termination loads are characterized by low VSWR, high power capacity and performance stability. Widely used for DMA/GMS/DCS/UMTS/WIFI/WIMAX etc.


Quick Details

High quality DC-3.0GHz DIN type 100W RF Dummy Load / Termination Load

Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number: TEL-TL
Power:100W
Frequency:3GHz
VSWR:<1.2:1
IP(dust&water proof):IP65
connector type:Din male

Technical Specifications :

Product DescriptionPart No.
Termination LoadN Male / N Female, 2WTEL-TL-NM/F2W
N Male / N Female, 5WTEL-TL-NM/F5W
N Male / N Female, 10WTEL-TL-NM/F10W
N Male / N Female, 25WTEL-TL-NM/F25W
N Male / N Female, 50WTEL-TL-NM/F50W
N Male / N Female, 100WTEL-TL-NM/F100W
DIN Male / Female, 10WTEL-TL-DINM/F10W
DIN Male / Female, 25WTEL-TL-DINM/F25W
DIN Male / Female, 50WTEL-TL-DINM/F50W
DIN Male / Female, 100WTEL-TL-DINM/F100W



100W Coaixal Fixed Termination Load is one of Telsto RF Load Products Line. Telsto is capable of

manufacturing and providing 1W, 2W, 5W, 10W, 15W, 20W, 25W, 30W, 50W, 100W, 200W, 300W, 500W RF

Dummy Load. The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G, DC-26G, DC-40G. RF Connectors can be N-type, SMA-type, DIN-type, TNC-type and BNC-type.
